Introduction
Fluid systems require not only control but also protection from reverse flow. This is where the brass swing check valve plays a crucial role. It allows liquid or gas to move in one direction while automatically preventing backflow, ensuring safety, system integrity, and operational efficiency.
Because of its durability, corrosion resistance, and ease of use, brass remains the most preferred material for check valves in residential, commercial, and industrial applications. In this article, we explore every aspect of the brass swing check valve—from how it works and where it’s used to buying and installation tips. If you’re seeking dependable one-way flow solutions, this guide offers practical and insightful information.
FAQ: Common Questions About Brass Swing Check Valves
Q1: What is a brass swing check valve used for?
It prevents the reverse flow of fluids in pipelines, protecting pumps and maintaining flow direction.
Q2: How does a swing check valve differ from a spring check valve?
A swing check valve uses gravity and flow pressure to operate a swinging disc, while a spring check valve uses a spring-loaded mechanism.
Q3: Can I install it in any orientation?
Most swing check valves require horizontal installation unless designed specifically for vertical flow.
Q4: Is brass a good material for water applications?
Absolutely. Brass resists corrosion, handles various water chemistries well, and maintains structural strength over time.
Q5: How often do these valves need maintenance?
Very rarely. With proper installation, brass swing check valves can last for decades without frequent servicing.
Definition and Features of Brass Swing Check Valves

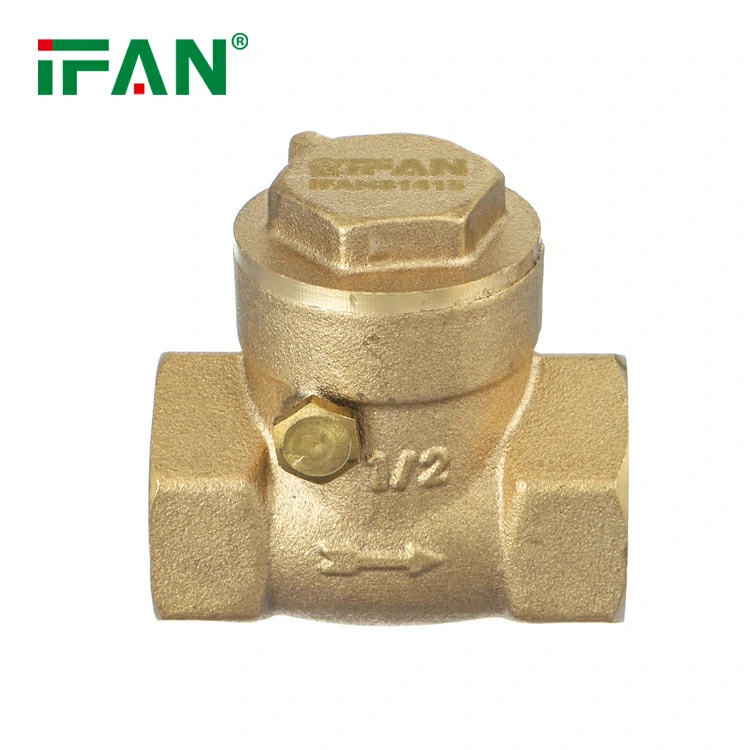

What Is a Brass Swing Check Valve?
A brass swing check valve is a mechanical device that allows fluid to flow in only one direction. It features a hinged disc or “flapper” that swings open when fluid flows in the correct direction and closes automatically when flow reverses. This design provides a simple yet effective solution to prevent backflow without needing external control.
Key Features and Benefits
- Backflow Protection: Automatically blocks reverse flow, safeguarding pumps and preventing system contamination.
- Durable Brass Body: Provides excellent corrosion resistance and longevity under varying pressures and temperatures.
- Quiet Operation: Reduces water hammer and noise during closure, offering a smoother user experience.
- Low Pressure Drop: The swing design allows fluid to pass with minimal resistance, improving efficiency.
- Service-Friendly Design: Most brass check valves have a threaded cap for easy internal access during inspection or cleaning.
Because of these features, brass swing check valves offer superior performance in countless piping systems.
Applications and Industries Using Brass Swing Check Valves
Brass swing check valves are used wherever unidirectional flow control is necessary. Their versatility makes them ideal for both domestic and industrial systems.
Common Application Areas
- Residential Plumbing Systems
They protect household water pumps and maintain pressure consistency. - Heating and Cooling Systems (HVAC)
Brass valves ensure circulation continues in one direction, especially in hydronic heating loops. - Irrigation Systems
They prevent dirty water from flowing backward into clean supply lines. - Compressed Air Systems
Swing check valves maintain pressure and stop air backflow in compressors and pipelines. - Industrial Process Lines
Chemical, oil, and gas operations use brass check valves in systems where metal compatibility and reliability are essential.
Wherever flow direction matters, swing check valves offer the most reliable solution with minimal maintenance.
Buying Guide: How to Select the Right Brass Swing Check Valve
Choosing the right brass swing check valve depends on a few critical factors. Selecting the wrong type could lead to system failures or reduced efficiency.
1. Check Valve Size and Connection Type
- Common Sizes: Ranging from 1/2″ to 2″, depending on flow volume.
- Connection Types: Most brass swing check valves come with BSP or NPT threaded ends. Choose according to your pipe thread.
2. Verify Flow Direction and Orientation
- Flow Arrow: Always check the body for a clearly marked flow direction arrow.
- Installation Orientation: Use swing types primarily in horizontal pipe runs unless the product is labeled vertical-compatible.
3. Consider Opening Pressure Requirements
If your system operates under low pressure, you need a valve with a lightweight disc to open easily. Heavy-duty options suit high-pressure flows.
4. Material Compatibility
- Brass Suitability: Excellent for potable water, air, non-corrosive chemicals, and light oils.
- Avoid Brass: In highly acidic or alkaline fluids, brass may degrade faster than stainless steel or PVC.
5. Internal Seal Type
- EPDM or NBR Seats: Offer tight sealing and temperature resistance up to 120°C.
- Teflon Seals: Provide chemical resistance in demanding applications.
When in doubt, consult the manufacturer’s datasheet for pressure ratings, flow coefficients, and recommended media types.
Installation Tips for Brass Swing Check Valves
Correct installation guarantees the check valve’s functionality and extends its service life. Here’s how to install a brass swing check valve efficiently:
Step-by-Step Installation Instructions
- Prepare the Pipeline
Clean both pipe ends and inspect threads for damage or debris. - Use Thread Sealant or PTFE Tape
Apply evenly to male threads to prevent leakage at the joint. - Align the Flow Direction
Always follow the cast flow arrow on the valve body for correct orientation. - Hand-Tighten First, Then Wrench-Finish
Avoid overtightening, which may stress the brass body and cause cracks. - Install Horizontally for Best Results
In most models, horizontal installation ensures proper swing disc movement. - Test the System
After installation, pressurize the system and check for leaks or unusual noises.
A well-installed swing check valve ensures safety, conserves energy, and extends the lifespan of downstream components.
Material Comparison: Brass vs. Other Check Valve Materials
To understand why brass remains the top choice, compare it with other materials:
| Feature | Brass | PVC | Stainless Steel | Bronze |
|---|---|---|---|---|
| Corrosion Resistance | High | High (in clean water) | Excellent | Very High |
| Pressure Rating | Medium to High | Low to Medium | Very High | High |
| Temperature Range | -20°C to 120°C | 0°C to 60°C | -100°C to 200°C | Similar to brass |
| Weight | Moderate | Light | Heavy | Moderate |
| Cost Efficiency | Affordable | Very Low | Expensive | Higher than brass |
| Best Use | General plumbing, HVAC | Irrigation, pools | Industrial, chemical | Marine and steam systems |
Conclusion: For most residential, HVAC, and light commercial uses, brass swing check valves offer the perfect balance between cost, durability, and performance.
Conclusion
In fluid control systems, ensuring flow direction is non-negotiable. The brass swing check valve delivers a simple, efficient, and long-lasting solution for backflow prevention. Its rugged brass body, gravity-assisted swing design, and reliable sealing mechanism make it indispensable across industries.
