CPVC Tube Fitting Female Elbow: A Complete Guide

Introduction

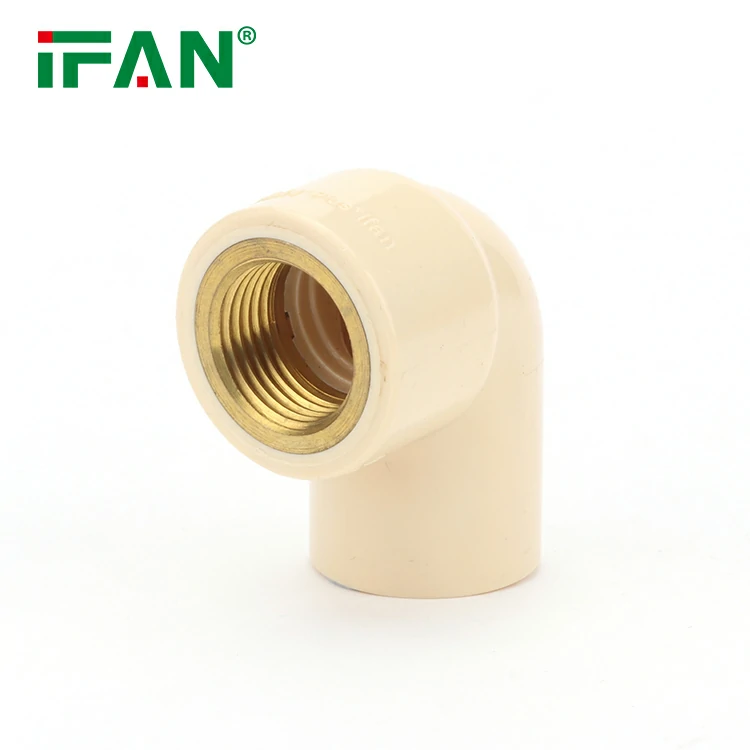

A CPVC Tube Fitting Female Elbow (also called a CPVC 90° female elbow or CPVC socket elbow) is a solvent-welded pipe fitting designed to redirect flow by 90 degrees while connecting two CPVC pipes or transitioning to male-threaded components. Made from chlorinated polyvinyl chloride (CPVC), these fittings resist heat (up to 200°F/93°C) and aggressive chemicals, making them ideal for industrial plumbing, chemical processing, and fire protection systems. This guide explores design features, installation best practices, and key applications to help you select and use CPVC female elbows effectively.

What Is a CPVC Tube Fitting Female Elbow?

A CPVC Tube Fitting Female Elbow is a 90-degree elbow with two solvent-weld sockets (one on each end) for permanent pipe connections. Unlike male-threaded elbows, female elbows rely on chemical bonding (solvent welding) to create a leak-proof seal without threads.Key Features:

• Material: CPVC resin (ASTM D1784, Cell Class 23447-B) for thermal and chemical stability.
• Pressure Rating: Up to 400 PSI at 73°F (23°C), dropping to 100 PSI at 180°F (82°C) (ASTM D2846).
• Temperature Range: -4°F to 200°F (-20°C to 93°C) (suitable for hot water and steam-adjacent systems).
• Certifications: NSF/ANSI 61 (potable water), ASTM F441 (industrial piping), UL 1821 (fire sprinkler systems).

Why Use a CPVC Tube Fitting Female Elbow?

1. Corrosion Resistance CPVC’s chlorine content makes it inert to acids, alkalis, and salts, unlike steel elbows that rust in hydrochloric acid (HCl) or sodium hydroxide (NaOH).
2. Thermal Stability Withstands hot water (up to 200°F) and high-temperature industrial fluids, outperforming PVC female elbows (limited to 140°F).
3. Leak-Proof Joints Solvent-welding creates a homogeneous bond, eliminating thread leakage risks in chemical storage or high-pressure systems.
4. Smooth Flow Path The 90° bend design minimizes pressure drops compared to sharp-angle connections, making it ideal for high-flow applications like water treatment plants.
5. Cost Efficiency CPVC female elbows cost 30–50% less than stainless steel or brass alternatives and require no specialized tools beyond basic solvent-welding equipment.

Types of CPVC Tube Fitting Female Elbows

1. Standard CPVC Female Elbow
   • Design: Two solvent-weld sockets for 90° redirection between two CPVC pipes (e.g., 1″ CPVC female elbow connecting two 1″ pipes).
   • Use Case: Common in residential plumbing, lab drains, and chemical reactors.
2. Reducing CPVC Female Elbow
   • Design: One larger socket and one smaller socket (e.g., 1½” x 1″) for 90° redirection with size transition.
   • Use Case: Used in HVAC systems to change direction while reducing pipe diameter.
3. Street CPVC Female Elbow
   • Design: One solvent-weld socket and one male-threaded (NPT) end for hybrid connections.
   • Use Case: Connects CPVC pipes to metal valves or pumps (e.g., 1″ female socket x ¾” male NPT).
4. Flanged CPVC Female Elbow
   • Design: Combines two solvent-weld sockets with a flange for bolting to tanks or equipment.
   • Use Case: Ideal for chemical processing vessels requiring disassembly for maintenance.
5. Heavy-Duty CPVC Female Elbow
   • Design: Thicker walls for higher pressure ratings (up to 600 PSI at 73°F).
   • Use Case: Used in industrial high-pressure systems like hydraulic fluid transport.

Applications of CPVC Tube Fitting Female Elbows

1. Chemical Processing Plants
   • Redirect sulfuric acid (H₂SO₄), sodium hypochlorite (bleach), and ferric chloride through reactor pipelines with zero corrosion risk.
2. Potable Water Systems
   • Change direction in municipal water mains and residential plumbing using NSF/ANSI 61-certified female elbows.
3. Fire Sprinkler Systems
   • UL-listed CPVC female elbows (e.g., BlazeMaster® CPVC) provide reliable 90° connections in commercial buildings.
4. Electroplating & Metal Finishing
   • Resist electrolytic corrosion when handling acidic or alkaline plating solutions (e.g., nickel, chrome, or zinc baths).
5. HVAC & Chilled Water Systems
   • Withstand glycol-based coolants without degradation or scaling, ensuring efficient flow direction changes.

Installation Guide for CPVC Tube Fitting Female Elbows

Select the Right Female Elbow

• Choose ASTM F441-compliant fittings for industrial use or NSF/ANSI 61-certified for potable water.
• Verify pressure and temperature ratings match system requirements.

Cut the Pipes

• Use a CPVC pipe cutter or fine-tooth saw to make square, deburred cuts on both pipe ends.
• Remove burrs with a reaming tool to ensure a smooth fit.

Dry-Fit the Female Elbow

• Slide the female elbow onto both pipes and check for proper alignment (no gaps or misalignment).

Apply CPVC Primer

• Clean the pipe ends and elbow interiors with CPVC primer (e.g., Oatey Orange) to soften the surface for bonding.

Apply CPVC Solvent Cement

• Use a medium-duty dauber to apply CPVC solvent cement (e.g., Weld-On 725) evenly on all pipe and elbow surfaces.

Assemble the Joints

• Insert the pipes into the female elbow with a ¼-turn motion to distribute cement evenly.
• Hold each joint for 30 seconds to prevent push-out during curing.

Cure the Joints

• Allow 2 hours for light pressure and 24 hours for full curing before pressure testing.
• Avoid disturbing the joints during curing to prevent weak bonds.

Pressure Test

• Conduct a 2-hour hydrostatic test at 1.5x operating pressure (e.g., 150 PSI for a 100 PSI system).
• Inspect for leaks with a soap solution or ultrasonic leak detector.
