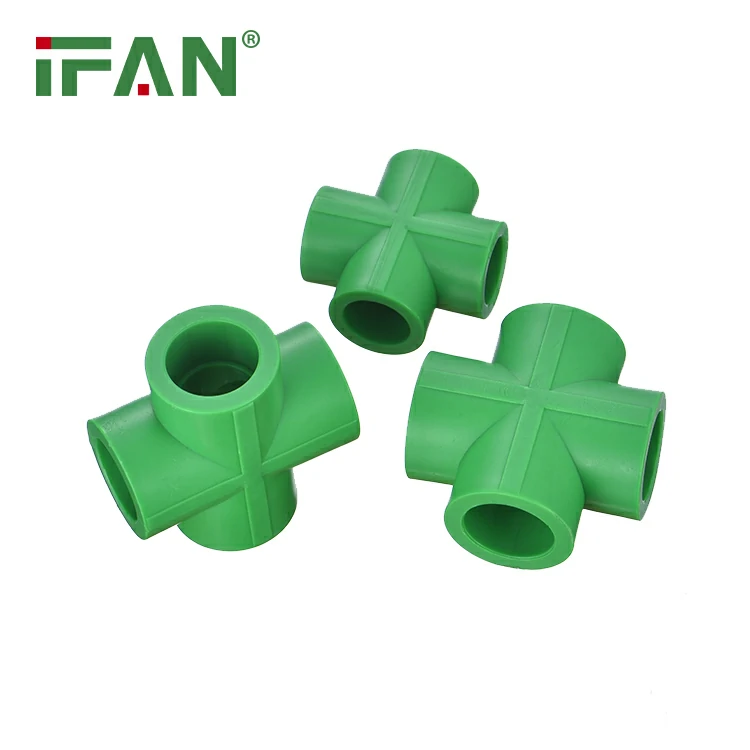

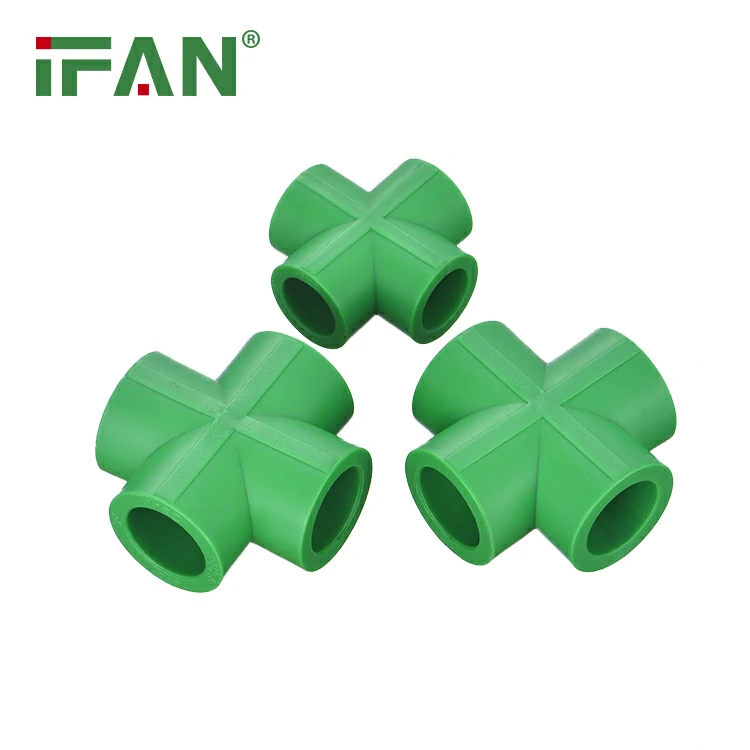

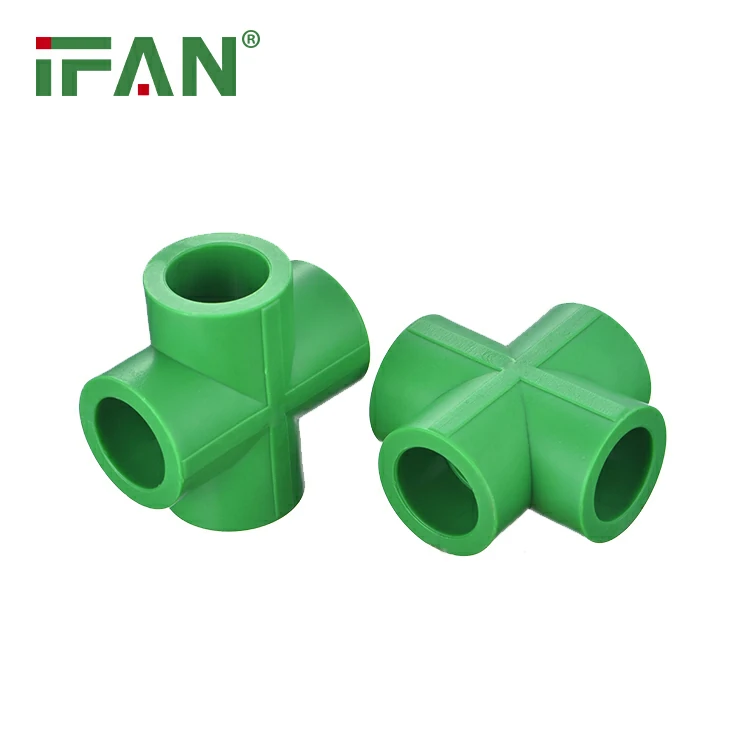

Plastic PPR Cross Fitting: Four-Way Connection Solution

Product Overview

Plastic PPR cross fittings are essential four-way connectors for polypropylene piping systems. These fittings enable balanced fluid distribution in multiple directions, making them ideal for complex plumbing networks requiring simultaneous multi-directional flow.

Key Features

• Material: High-quality polypropylene random copolymer

• Design: Four equal or reducing outlets

• Temperature Range: -40°C to +100°C operation

• Pressure Rating: PN20 (20 bar) standard

• Connection Type: Socket fusion ends

• Sizes Available: 20mm to 63mm diameters

Technical Specifications

• Configuration: Equal (all outlets same size) or reducing (mixed sizes)

• Pressure Test: 1.5x working pressure rating

• Standards Compliance: ISO 15874, NSF/ANSI 61

• Chemical Resistance: Excellent resistance to acids and alkalis

• Color Coding: Standard white or green, with temperature stripes

Installation Guide

1. Pipe Preparation: Cut all four pipe ends square and deburr

2. Marking: Indicate insertion depth on each pipe

3. Simultaneous Heating: Use multi-head heating tool for even fusion

4. Quick Connection: Join all ends promptly without rotation

5. Alignment: Ensure proper angular alignment during assembly

6. Cooling: Allow complete cooling before pressure testing

Applications

• Residential: Multi-branch water distribution systems

• Commercial: HVAC system connections

• Industrial: Process piping networks

• Irrigation: Agricultural water distribution systems

• Solar: Thermal system connections

Advantages

• Space Saving: Single fitting replaces multiple connectors

• Leak Prevention: Reduced connection points enhance reliability

• Flow Efficiency: Smooth interior maintains hydraulic performance

• Cost Effective: Lower installation time and labor costs

• Durability: Crack-resistant design under pressure fluctuations

• Chemical Resistance: Suitable for various fluid types

Quality Assurance

• Material Testing: Virgin PPR material certification

• Pressure Rating: Hydrostatically tested to standards

• Dimension Control: Precise manufacturing tolerances

• Performance: 50+ years service life expectancy

Plastic PPR cross fittings provide reliable four-way connections while maintaining system integrity and flow efficiency. Their robust design and simple installation make them essential components for complex PPR piping networks in residential, commercial, and industrial applications.
