Plastic PPR Double Union Ball Valve: Complete Technical Guide

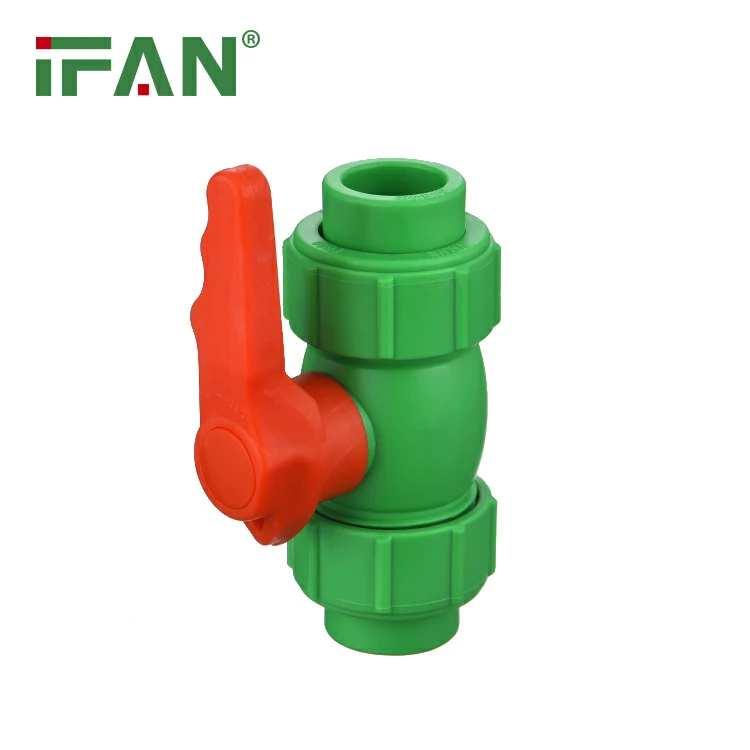

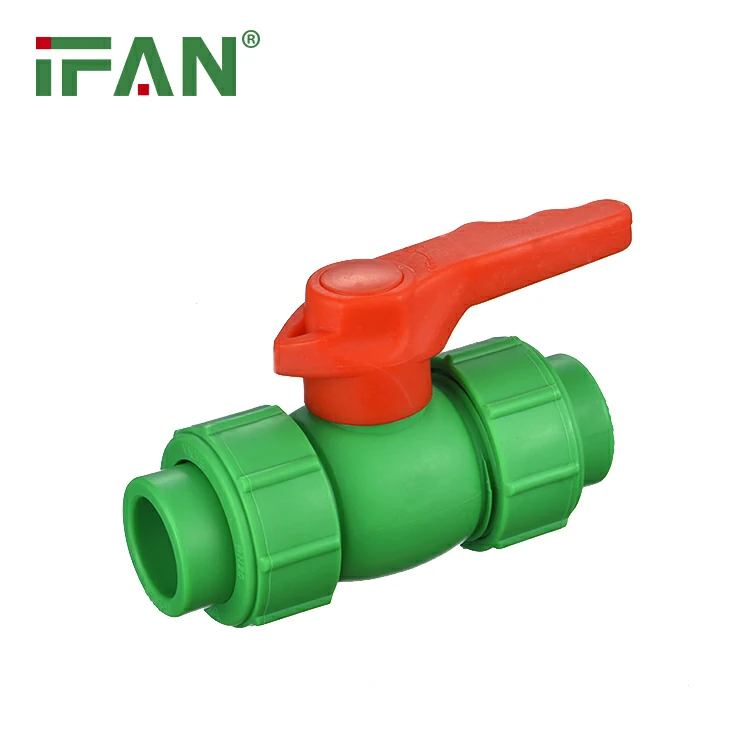

Plastic PPR double union ball valves are innovative flow control devices designed specifically for polypropylene random copolymer (PPR) piping systems. These valves feature a unique combination of PPR socket ends for permanent fusion connections and union mechanisms on both sides of the ball valve, enabling easy removal and maintenance without pipe cutting. The all-polypropylene construction ensures complete chemical compatibility with PPR pipelines while providing reliable quarter-turn flow control for various industrial, commercial, and residential applications.

The double union ball valve design offers exceptional advantages for maintenance and system modifications. The union connections allow for quick disassembly and reassembly, significantly reducing downtime during repairs or component replacement. These valves maintain the excellent chemical resistance, thermal stability, and corrosion resistance of PPR material throughout the entire assembly. The full-port ball valve design ensures minimal pressure drop when open, while providing bubble-tight shutoff when closed. Their lightweight construction and complete material homogeneity eliminate galvanic corrosion concerns.

Product Specifications

Plastic PPR double union ball valves comply with international standards including ISO 15874 and DIN 8077/8078. Standard sizes range from 20mm to 110mm to match common PPR pipe dimensions. Pressure ratings typically include PN16 and PN20 classifications, supporting working pressures up to 20 bar at 20°C. Temperature resistance ranges from -20°C to 95°C, making them suitable for both cold and hot water applications. The valve mechanism features PPR components with EPDM or FPM seals, ensuring complete material compatibility and corrosion resistance throughout the system.

Installation Guidelines

Proper installation requires careful execution of fusion and mechanical connection techniques. Begin by preparing the pipe ends according to standard socket fusion procedures, ensuring clean, square cuts with proper chamfering. Use calibrated fusion equipment to heat both PPR socket ends and pipe ends simultaneously, maintaining recommended temperature between 260°C and 280°C. Ensure the valve is in the open position during installation to prevent heat damage to internal components. After fusion, allow sufficient cooling time before proceeding with union assembly. For the union connections, hand-tighten the nuts initially, then use an appropriate wrench to achieve the final tightness according to manufacturer’s specifications, avoiding over-tightening.

Applications and Industry Uses

These valves serve critical functions across multiple sectors. Chemical processing plants utilize them for corrosive fluid handling systems requiring frequent maintenance. Pharmaceutical facilities employ them in process piping where material purity and chemical resistance are essential. Water treatment plants incorporate these valves for maintenance isolation points in treatment systems. Heating and cooling systems use them for zone control and equipment isolation. Industrial plumbing systems benefit from their use in areas requiring regular maintenance and chemical resistance.

Maintenance and Operational Considerations

Regular operation maintains valve functionality – exercise the valve periodically to prevent seizing. Monitor union connections for signs of leakage and retighten if necessary according to manufacturer’s specifications. Check for smooth operation of the handle and address any stiffness promptly. For systems with particulate matter, occasional flushing may be necessary. Maintain appropriate replacement seals and union nuts for maintenance operations. Always use manufacturer-approved replacement parts to ensure system compatibility.

Conclusion

Plastic PPR double union ball valves provide complete material compatibility and maintenance flexibility for PPR piping systems. Their all-polypropylene construction ensures uniform chemical resistance throughout the valve assembly, while the double union design offers unparalleled maintenance convenience. Proper selection based on size, pressure rating, and application requirements ensures optimal system performance. Adherence to correct installation procedures and maintenance practices guarantees long-term reliability and system integrity. These valves represent the ideal solution for applications requiring both the full benefits of PPR material and the convenience of demountable flow control components.
