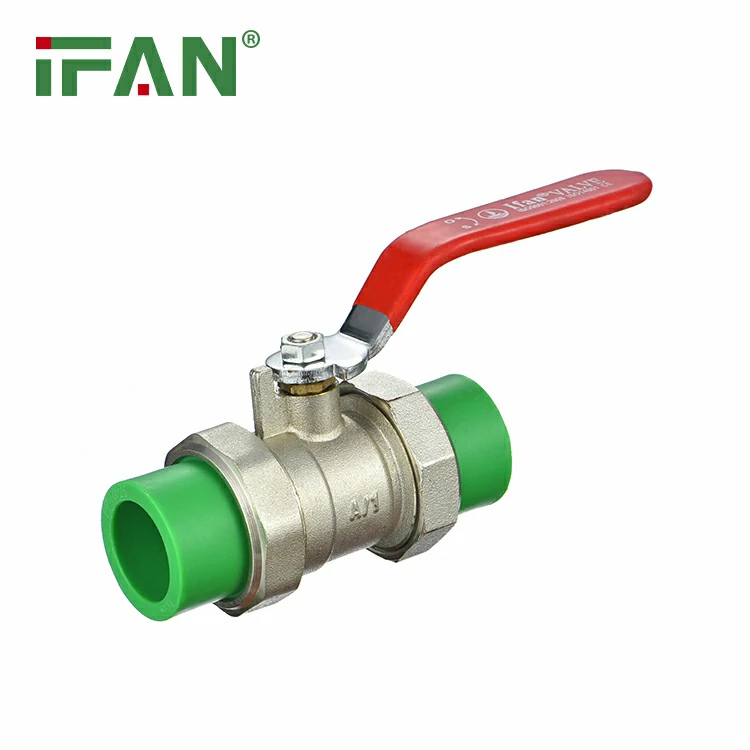

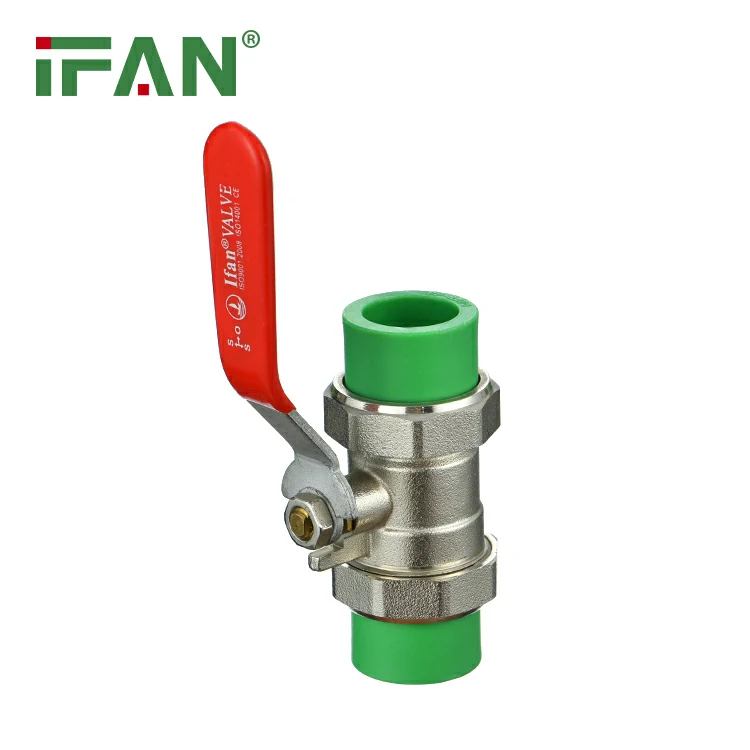

PPR Brass Double Union Ball Valve: Complete Technical Guide

PPR brass double union ball valves are advanced flow control components designed for polypropylene random copolymer (PPR) piping systems. These innovative valves combine PPR socket ends for permanent fusion connection with a brass union mechanism and ball valve operation, providing exceptional versatility for maintenance, repairs, and flow control. The integrated union connections allow for easy removal and replacement of the valve core without disturbing the pipeline, making them ideal for applications requiring frequent maintenance or modifications.

The double union ball valve design offers significant advantages for various applications. The brass union mechanism features precision machining with high-quality seals that ensure leak-proof performance even after multiple disconnections. The ball valve operation provides quick quarter-turn flow control with excellent shut-off capability. These valves maintain the chemical resistance of PPR while incorporating the durability and reliability of brass components. The union design allows for easy alignment adjustment during installation and facilitates quick disassembly for maintenance or system changes.

Product Specifications

PPR brass double union ball valves comply with international standards including ISO 15874. Standard sizes range from 20mm to 110mm to match common PPR pipe dimensions. Pressure ratings typically include PN16 and PN20 classifications, supporting working pressures up to 20 bar at 20°C. Temperature resistance ranges from -20°C to 95°C for the PPR components, while brass components can withstand higher temperatures. The ball valve mechanism typically features full-port design for minimal pressure drop, with chrome-plated brass components and EPDM or Viton seals suitable for potable water applications.

Installation Guidelines

Proper installation requires careful execution of both fusion and mechanical connection techniques. Begin by preparing the pipe ends according to standard socket fusion procedures, ensuring clean, square cuts with proper chamfering. Use calibrated fusion equipment to heat both PPR socket ends and pipe ends simultaneously, maintaining recommended temperature between 260°C and 280°C. After fusion, allow sufficient cooling time before proceeding with union assembly. For the brass union connections, ensure all components are clean and properly aligned. Hand-tighten the union nuts initially, then use an appropriate wrench to achieve the final tightness according to manufacturer’s specifications. Ensure the valve is in the open position during installation to prevent damage to the ball mechanism.

Applications and Industry Uses

These valves serve essential functions across multiple sectors. Plumbing systems utilize them for main shut-off valves and equipment isolation points. Heating systems employ double union ball valves for radiator connections and boiler isolation. Industrial process piping uses them for equipment isolation and maintenance sections. Water treatment facilities incorporate these valves for filter isolation and system maintenance points. Irrigation systems benefit from their use in main line control and zone isolation where regular maintenance is required.

Maintenance and Operational Considerations

Regular operation helps maintain valve functionality – exercise the valve periodically to prevent seizing. Monitor for signs of leakage at union connections and valve stem packing. Check seal integrity during maintenance cycles and replace as needed. Ensure proper support of connected components to prevent stress on the union mechanism. For systems experiencing thermal cycling, implement regular inspection of union tightness. Maintain appropriate replacement seals and components for maintenance operations. Always use manufacturer-approved replacement parts.

Conclusion

PPR brass double union ball valves provide exceptional versatility and reliability for PPR piping systems requiring both flow control and demountable connections. Their combination of permanent fusion ends, reusable union mechanisms, and ball valve operation offers unmatched flexibility for maintenance and system modifications. Proper selection based on size, pressure rating, and application requirements ensures optimal system performance. Adherence to correct installation procedures and maintenance practices guarantees long-term reliability and system integrity. These valves represent the ideal solution for applications requiring both the benefits of PPR material and the convenience of demountable flow control components.
