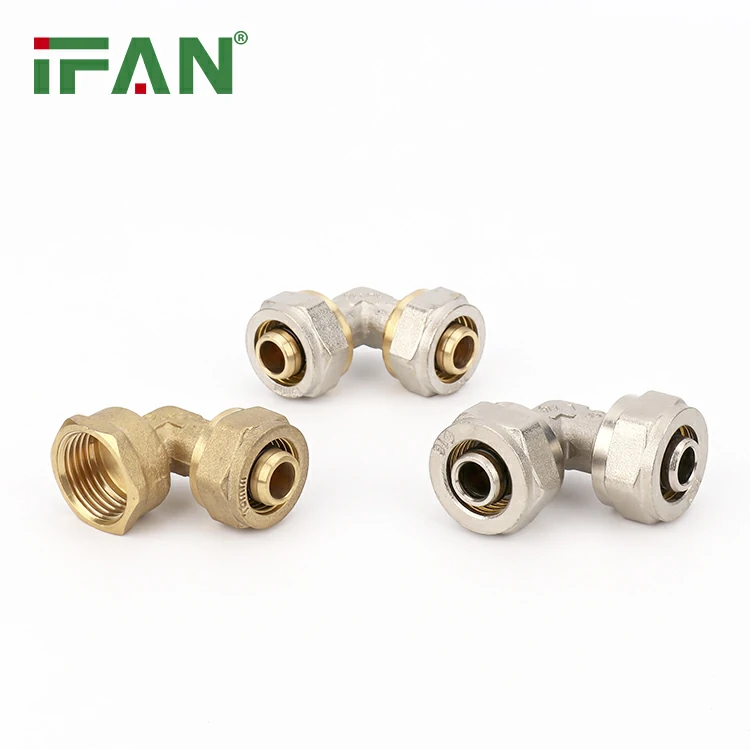

IFAN ASTM F877 Water Use Brass Elbow Compression Fittings

Brass Elbow Compression Fittings: The Complete Professional Guide

Introduction

Brass elbow compression fittings provide a reliable, tool-free connection method for creating precise 90° and 45° turns in plumbing and hydraulic systems. These versatile fittings combine the durability of dezincification-resistant brass with a simple compression mechanism, offering installers a practical alternative to soldered or threaded connections. Ideal for both permanent installations and applications requiring occasional disassembly, brass elbow compression fittings are widely used in residential, commercial, and industrial piping systems.

Key Advantages

1. Tool-Free Installation

• No special tools or heat sources required

• Simple wrench tightening creates secure connections

• Ideal for confined spaces and retrofit applications

2. Durable Construction

• Made from CW602N dezincification-resistant brass

• Corrosion-resistant for long service life

• Withstands high pressure and temperature fluctuations

3. Versatile Applications

• Suitable for water, gas, and hydraulic systems

• Compatible with copper, PEX, and polyethylene tubing

• Available in multiple angles (90° and 45°)

4. Maintenance-Friendly

• Allows for easy disassembly and reassembly

• Replaceable compression olives and nuts

• Simplifies system modifications and repairs

Technical Specifications

Material Standards

• Body: DZR brass (EN 12165 CW602N)

• Compression nut: CW614N brass

• Olive/ferrule: Copper or brass

• Seals: EPDM or NBR (where applicable)

Performance Ratings

• Working pressure: 16 bar (PN16) at 65°C

• Temperature range: -20°C to 120°C

• Certifications: WRAS, NSF/ANSI 61, DVGW

Standard Sizes and Types

• Common sizes: 15mm (1/2″) to 54mm (2″)

• Equal and reducing configurations

• Straight and angled variants

• Male and female threaded options

Professional Installation Guide

Preparation

1. Cut pipe/tube squarely and deburr

2. Slide compression nut onto pipe

3. Position compression olive/ferrule

4. Verify proper orientation of elbow

Assembly

1. Insert pipe fully into fitting body

2. Hand-tighten compression nut

3. Final tighten with wrenches (typically 1-1.5 turns)

4. Avoid over-tightening to prevent distortion

Quality Control

• Visual inspection for proper alignment

• Pressure test at 1.5x working pressure

• Check for leaks after initial pressurization

• Verify adequate support for angled fittings

Maintenance & Troubleshooting

Routine Maintenance

• Annual visual inspection for leaks

• Check for corrosion or mineral buildup

• Verify tightness in vibration-prone areas

Common Issues

Conclusion

Brass elbow compression fittings offer a practical, reliable solution for creating angled connections in various piping systems. Their combination of durable construction, straightforward installation, and maintenance-friendly design makes them particularly valuable for applications where soldering isn’t practical or permitted. When properly selected and installed according to manufacturer specifications, these fittings provide long-term, leak-free performance in demanding environments. Professional installers appreciate their versatility in both new construction and repair situations, making them an essential component in the modern plumber’s toolkit.
