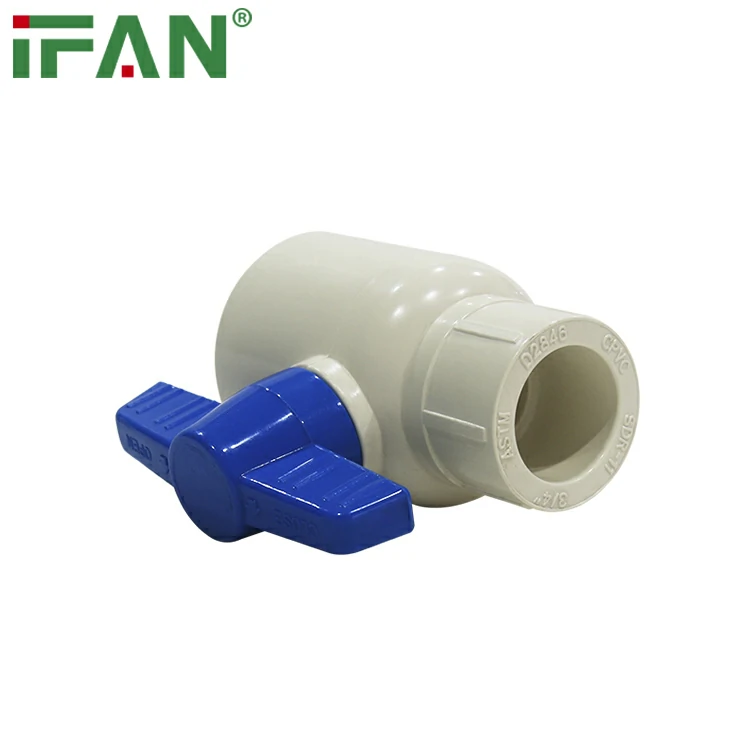

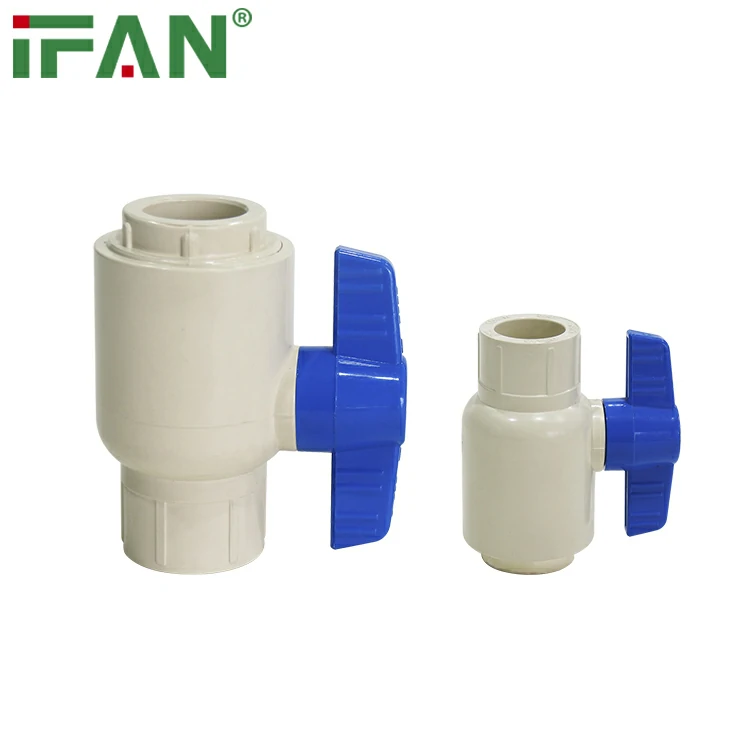

IFAN ASTM2846 CPVC Fittings PVC Ball Valve

PVC Ball Valve: Technical Specifications & Application Guide

1. Product Overview

PVC ball valves are lightweight, corrosion-resistant flow control devices designed for water and chemical applications. Featuring a quarter-turn operation with full-port design, these valves provide excellent flow characteristics and bubble-tight shutoff in PVC piping systems.

2. Material Specifications

• Body/Ends: Schedule 40/80 PVC (Type I or II)

• Ball: Chrome-plated PVC or CPVC

• Seats: PTFE or EPDM

• Stem: Reinforced PVC or stainless steel

• O-rings: EPDM or Viton (chemical resistant)

3. Technical Parameters

Pressure Ratings

• Schedule 40: 150 psi @ 23°C

• Schedule 80: 230 psi @ 23°C

• Temperature derating: 50% @ 60°C

Temperature Range

• Standard: 0°C to 60°C

• CPVC version: -40°C to 93°C

Flow Characteristics

• Full port (100% bore)

• Cv value: 25 (for 1″ size)

• Pressure drop: <0.1 bar @ full flow

4. Connection Types

• Socket weld: For permanent solvent-welded joints

• Threaded: NPT or BSP threads

• Flanged: ANSI Class 150 flange pattern

• Union: For easy maintenance/disassembly

5. Installation Guidelines

Pre-Installation

• Inspect valve for shipping damage

• Verify compatibility with system media

• Check pipe ends for square cuts/deburring

Installation Steps

1. For socket weld:

   • Apply PVC primer then cement

   • Insert fully and hold for 30 seconds

   • Cure for 15 minutes before pressure

2. For threaded:

   • Use PTFE tape (10-12 wraps)

   • Hand-tighten plus 1-2 turns

   • Avoid over-tightening

3. For flanged:

   • Align bolts finger-tight first

   • Tighten in crisscross pattern

   • Final torque: 25 ft-lbs (1″ size)

Post-Installation

• Cycle valve 3-5 times before use

• Pressure test at 1.5x working pressure

• Check for leaks at all joints

6. Maintenance Schedule

Routine Checks

• Monthly: Operate through full cycle

• Quarterly: Inspect for cracks/deformation

• Annually: Check O-ring condition

Service Procedures

• Stem lubrication (silicone grease)

• Seat/O-ring replacement kit available

• Full rebuild every 5 years recommended

7. Troubleshooting Guide

8. Industry Compliance

• Standards:

  • ASTM D2466 (socket weld)

  • ASTM D2467 (threaded)

  • NSF/ANSI 61 (potable water)

  • FDA compliant versions available

9. Application Notes

• Recommended for:

  • Water treatment plants

  • Chemical processing

  • Irrigation systems

  • Pool/spa installations

• Not recommended for:

  • Compressed air/gas

  • High-temperature steam

  • Abrasive slurries

Conclusion

PVC ball valves offer an economical, corrosion-resistant solution for fluid control in numerous industrial and commercial applications. Their lightweight construction and easy installation make them particularly suitable for corrosive environments where metal valves would fail. Proper selection of materials (PVC/CPVC) and pressure ratings ensures reliable performance, while adherence to installation and maintenance protocols maximizes service life. The valves’ compliance with international standards guarantees safe operation in potable water and chemical handling systems.
