PVC Union Fittings: A Practical Guide for Detachable Pipe Connections

Introduction

PVC union fittings provide a simple solution for creating detachable joints in piping systems. These versatile components allow for easy disassembly without cutting pipes, making them ideal for maintenance-heavy applications like pumps, filters, and valves.

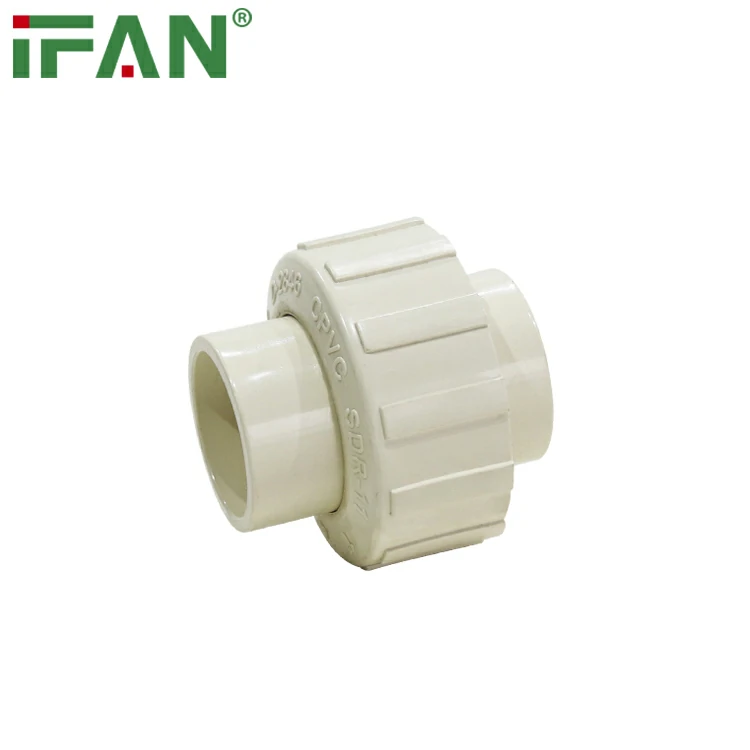

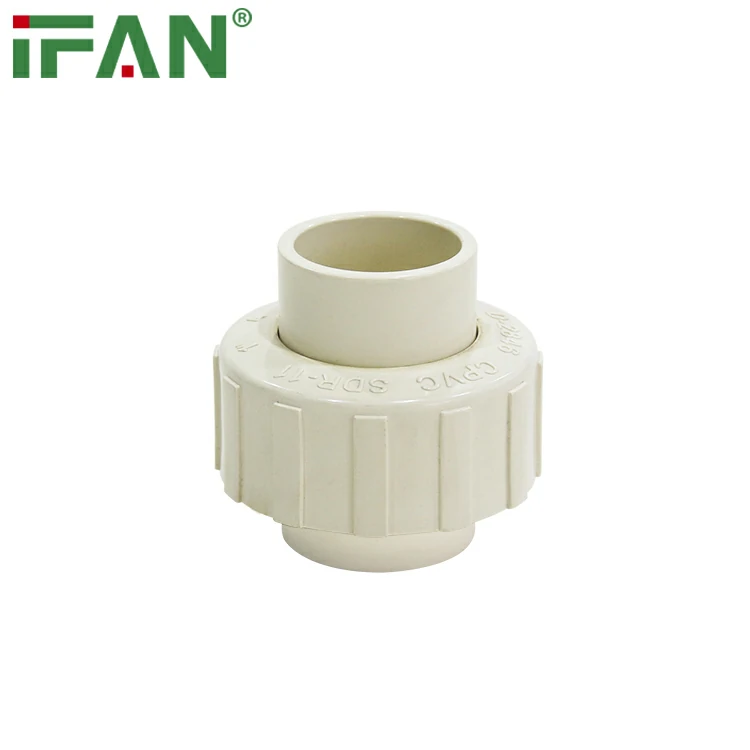

What Is a PVC Union?

A PVC union consists of three key parts:

1. Female threaded end

2. Male threaded end

3. Central locking nut

This smart design enables quick disconnection while maintaining a secure seal when tightened properly.

Types of PVC Unions

Threaded PVC Union

• No glue required

• Reusable design

• Needs Teflon tape for sealing

Solvent-Weld PVC Union

• Permanent but serviceable

• Stronger than threaded versions

• Requires PVC primer and cement

Schedule 80 PVC Union

• Thicker walls for high-pressure use

• Handles up to 300 PSI

• Industrial-grade durability

Common Applications

• Water treatment systems

• Pool and spa equipment

• Irrigation maintenance

• Industrial piping

• Plumbing repairs

Installation Guide

1. Cut pipes cleanly and deburr edges

2. For threaded unions:

   • Apply Teflon tape (3-4 wraps clockwise)

3. For solvent-weld unions:

   • Use PVC primer then cement

4. Hand-tighten nut plus 1/4 turn with strap wrench

5. Pressure test at 1.5x working pressure

Maintenance Tips

• Annual visual inspections

• Lubricate threads to prevent seizing

• Replace worn O-rings when needed

Conclusion

PVC union fittings offer the perfect balance of security and serviceability for any piping system requiring occasional disassembly. Their simple yet effective design makes maintenance tasks significantly easier while maintaining system integrity.
