The Complete Guide to Brass PEX Sliding Elbow Fittings

Modern plumbing requires solutions that combine durability with installation efficiency. Brass PEX sliding elbow fittings represent the perfect marriage of traditional reliability and modern convenience. These innovative fittings provide the strength and longevity of brass with the quick-connect simplicity of sliding fitting technology, making them ideal for creating precise 90° and 45° turns in PEX plumbing systems.

The combination of brass construction and sliding mechanism technology addresses the needs of both professional plumbers and DIY enthusiasts who seek reliable, long-lasting connections without sacrificing installation speed. Whether you’re working on a complex plumbing network or a simple repair, understanding these hybrid fittings can significantly enhance your project’s quality and efficiency.

This comprehensive guide covers everything you need to know about brass PEX sliding elbow fittings – from their unique advantages and proper installation techniques to selection criteria and maintenance considerations.

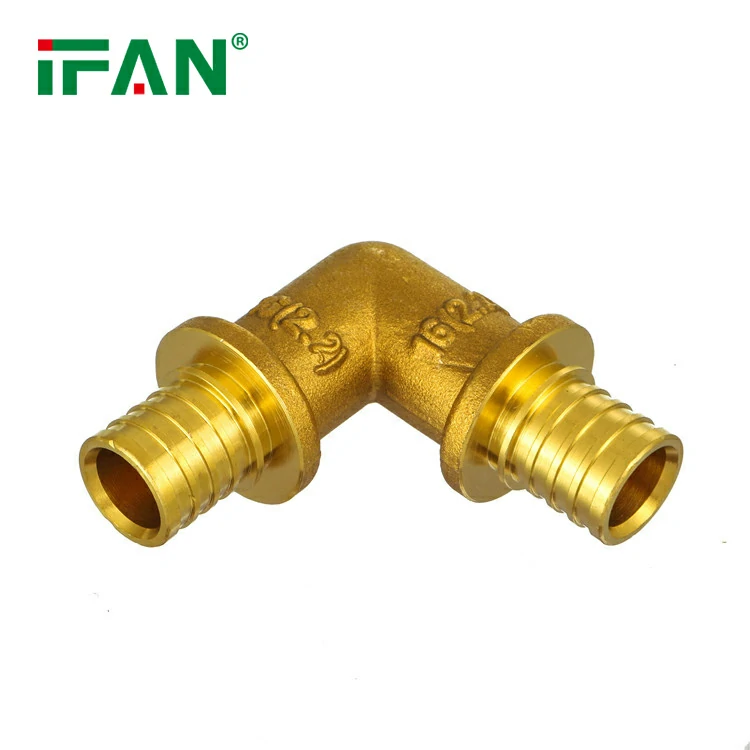

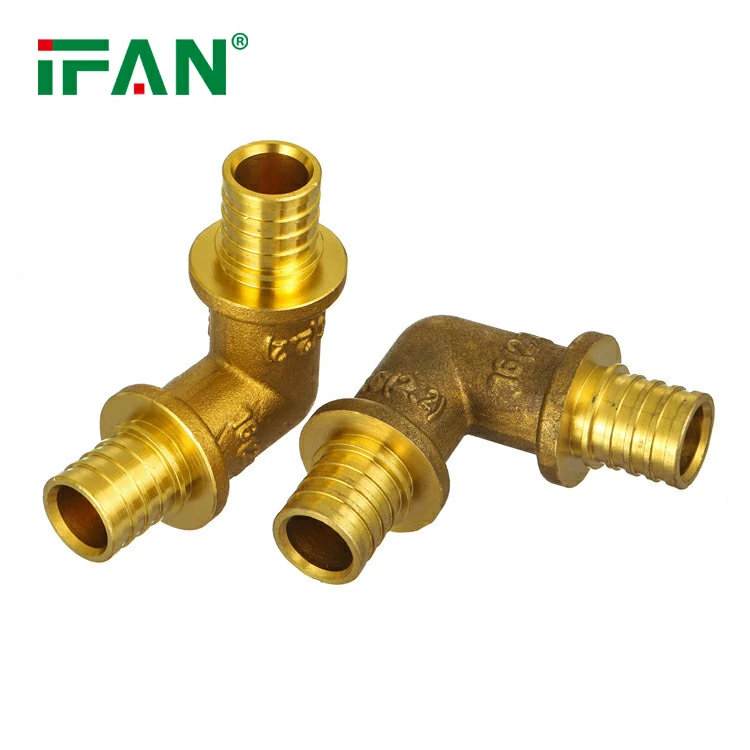

What Are Brass PEX Sliding Elbow Fittings?

Brass PEX sliding elbow fittings are specialized connectors that combine several advanced features. They maintain the traditional elbow shape (typically 90° or 45° angles) crafted from durable brass, while incorporating modern sliding mechanism technology for tool-free installation. The brass body provides superior strength and corrosion resistance, while the integrated sliding mechanism features stainless steel grip rings that securely hold PEX tubing in place.

These fittings serve as transition points where plumbing lines need to change direction, offering the reliability of metal fittings with the installation convenience of push-to-connect technology. The brass construction ensures compatibility with both hot and cold water systems while maintaining excellent pressure ratings.

Key Benefits of Brass PEX Sliding Elbow Fittings

The unique combination of materials and design offers numerous advantages:

1. Superior Durability: Brass construction provides excellent corrosion resistance and mechanical strength, outperforming plastic alternatives in demanding applications.

2. Tool-Free Installation: The sliding mechanism allows for quick, simple connections without special tools – just push the PEX tubing into the fitting until it clicks.

3. Temperature Resistance: Brass handles extreme temperatures better than plastic fittings, making these ideal for both hot water lines and outdoor applications.

4. High Pressure Rating: Brass bodies withstand higher pressure levels than plastic fittings, providing an extra margin of safety in high-pressure systems.

5. Reusability: Many brass sliding fittings allow for multiple connections and disconnections, reducing waste during system modifications.

6. Visual Verification: Most feature clear inspection windows or indicators to confirm proper tube insertion.

7. Universal Compatibility: Work with all PEX types (A, B, and C) and various tubing sizes.

Installation Process: How to Use Brass PEX Sliding Elbow Fittings

Proper installation ensures optimal performance and longevity:

1. Tube Preparation: Cut PEX tubing cleanly and squarely using a dedicated PEX cutter. Remove any burrs or rough edges.

2. Depth Marking: Identify the insertion depth mark on the fitting and transfer this measurement to your tubing using the provided gauge or a marker.

3. Connection: Push the tubing straight into the fitting until it reaches the depth mark. Listen for the audible click indicating proper engagement.

4. Verification: Gently tug on the tubing to confirm the stainless steel grip rings have engaged properly.

5. Inspection: Check any visual indicators or inspection windows to confirm full tube insertion.

6. Pressure Testing: Always conduct a system pressure test before concealing fittings within walls or ceilings.

Types of Brass PEX Sliding Elbow Fittings

Available in various configurations to meet different plumbing needs:

• 90° Elbows: Standard right-angle turns

• 45° Elbows: Gradual angle changes

• Street Elbows: Male-threaded on one end, sliding connection on the other

• Reducing Elbows: Different size connections on each end

• Multi-Angle Elbows: Adjustable angle options

How to Choose the Right Brass PEX Sliding Elbow Fitting

Selection considerations for optimal performance:

• Size Compatibility: Match fitting size to your PEX tubing diameter (½”, ¾”, 1″)

• Angle Requirements: Choose between 90° and 45° configurations based on your plumbing layout needs

• Material Quality: Select fittings made from lead-free, DZR brass for potable water safety

• Pressure Ratings: Verify fittings meet or exceed your system’s pressure requirements

• Certifications: Look for NSF/ANSI 61 and 372 certifications for drinking water safety

• Brand Reputation: Choose manufacturers with proven track records in quality brass fittings

Brass vs. Plastic Sliding Elbow Fittings

Understanding the differences helps in making informed choices:

• Durability: Brass significantly outperforms plastic in impact resistance and longevity

• Temperature Performance: Brass maintains integrity at higher temperatures

• UV Resistance: Brass fittings are suitable for outdoor applications where plastic might degrade

• Cost Considerations: Brass fittings typically cost more but offer longer service life

• Installation: Both offer similar tool-free installation convenience

Brass PEX Sliding Elbow Fittings: FAQs

Q: Are brass sliding fittings compatible with all PEX types?
A: Yes, quality brass sliding fittings work with PEX-A, PEX-B, and PEX-C tubing when properly installed.

Q: Can I use these fittings for both hot and cold water?
A: Absolutely. Brass fittings excel in both applications and handle temperature extremes better than plastic alternatives.

Q: Are brass fittings suitable for outdoor use?
A: Yes, brass naturally resists UV degradation and environmental factors that affect plastic fittings.

Q: Do I need to use pipe dope or thread tape?
A: Only if using threaded adapters. For sliding connections, no additional sealants are needed.

Q: How many times can I reuse these fittings?
A: Most quality brass sliding fittings allow multiple reconnections, but always check manufacturer specifications.

Applications for Brass PEX Sliding Elbow Fittings

Ideal for numerous plumbing scenarios:

• Residential water supply systems

• Commercial plumbing installations

• Hydronic heating systems

• Radiant floor heating networks

• Industrial fluid transport

• Outdoor plumbing applications

• High-temperature water systems

Maintenance and Care

While brass sliding fittings require minimal maintenance, consider these tips:

• Regular Inspection: Periodically check visible fittings for signs of corrosion or damage

• System Flushing: Include fittings in regular system maintenance and flushing

• Freeze Protection: In cold climates, ensure proper insulation to prevent freezing damage

• Water Quality: Monitor water chemistry as extremely aggressive water can affect brass over time

Upgrade to Brass Reliability with Modern Convenience

Brass PEX sliding elbow fittings offer the perfect solution for professionals and homeowners who refuse to compromise between quality and convenience. The combination of brass’s time-tested durability with innovative sliding technology creates fittings that install quickly but last for decades.

IFAN factory started in 1993. And IFAN has workshop 120000 square meter with 610 staff. IFAN can design and produce all plumbing pipe and fitting include PPR,PVC,CPVC PPSU HDPE PEXA PEXB PERT pipe and fitting ,brass fitting, brass ball valve ,heating system , gas system , sanitary faucets and hose, In the past 30 Years, IFAN has never forgotten his mission-To protect health and safety. And IFAN factory use best materials to produce high quality pipe and fittings with automatic production line and high tech quality control machines. The most important,IFAN can guarantee that all pipes and fittings manufactured by IFAN are qualified. More information pls feel free contact us Whatsapp.
