Brass Compression Fittings: Reliable Solutions for Secure Plumbing Connections

Brass compression fittings represent the gold standard in creating secure, leak-proof connections in plumbing, hydraulic, and gas systems without requiring specialized tools or heating. These versatile components have become indispensable for both professional installers and DIY enthusiasts due to their exceptional reliability and ease of installation.

This comprehensive guide examines the technical specifications, advantages, and practical applications of brass compression fittings, providing essential knowledge for your fluid and gas connection needs.

Understanding Brass Compression Fittings

Brass compression fittings are mechanical connectors that create secure seals between pipes or tubes through compression force. These three-piece fittings consist of:

• Compression Nut: Creates axial force when tightened

• Compression Ring (Olive): Deforms to create a permanent seal

• Fitting Body: Provides connection point and compression surface

Key Characteristics:

• Material Excellence: DZR brass (Dezincification Resistant) per EN 1254 standards

• Temperature Range: -20°C to 150°C (-4°F to 302°F)

• Pressure Rating: PN 16 to PN 25 (16-25 bar) standard options

• Corrosion Resistance: Excellent resistance to water and aggressive media

• Reusability: Suitable for multiple assembly cycles when properly maintained

Technical Advantages of Brass Compression Fittings

1. Superior Seal Integrity

The compression ring creates a metal-to-metal seal that maintains integrity under vibration, thermal cycling, and pressure fluctuations, ensuring decades of reliable service.

2. Installation Versatility

• Tool Flexibility: Requires only basic wrenches for installation

• No Heat Required: Cold installation eliminates fire risks

• Visual Verification: Simple inspection confirms proper assembly

• Time Efficiency: Connections completed in seconds rather than minutes

3. Maintenance Accessibility

• Demountable Design: Allows for system modifications and repairs

• Component Replacement: Individual elements can be replaced if damaged

• System Expansion: Simplified addition of new branches or fixtures

4. Material Compatibility

Suitable for connecting:

• Copper tubing (soft and hard temper)

• PEX and multilayer pipes

• Stainless steel tubing

• Various plastic piping systems

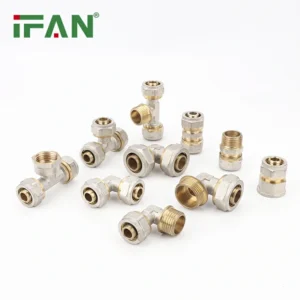

Comprehensive Product Range

Straight Connections

• Couplings: Equal and reducing diameters

• Double-End Compression: Both sides compression style

• Male/Female Thread Adaptors: Transition to threaded systems

Directional Components

• 90° Elbows: Standard and reducing configurations

• 45° Elbows: Gradual direction changes

• Tees: Equal and reducing flow distribution

• Crosses: Four-way connection points

Specialized Fittings

• Service Valves: Isolation and control valves

• Transition Fittings: Brass to different material adaptors

• Metric/Imperial: Available in both measurement systems

Industry Applications

Plumbing Systems

• Water supply lines and distribution

• Fixture connections and appliance hookups

• Emergency repair and maintenance applications

Heating Systems

• Radiator connections and balancing

• Underfloor heating manifolds

• Boiler connections and service valves

Gas Applications

• Natural gas and LPG installations (specific certified fittings)

• Gas appliance connections

• Meter installations and bypasses

Industrial Uses

• Hydraulic systems

• Compressed air lines

• Instrumentation and control systems

Professional Installation Guide

Preparation Requirements

• Tube Preparation: Square cutting and deburring essential

• Surface Inspection: Clean, smooth tube surfaces required

• Nut Orientation: Correct positioning before assembly

• Lubrication: Food-grade lubricant for easier assembly (where permitted)

Assembly Procedure

1. Component Order: Slide nut then ring onto tube

2. Initial Engagement: Hand-tighten nut onto fitting body

3. Final Tightening: 1-1.5 turns with appropriate wrench

4. Pressure Testing: Verify integrity before system commissioning

Critical Considerations

• Overtightening Prevention: Avoid compression ring distortion

• Alignment: Ensure straight, stress-free connections

• Accessibility: Maintain adequate service access

• Support Requirements: Proper piping support essential

Quality Assurance Standards

Our brass compression fittings meet rigorous international standards:

• Material Compliance: EN 12165 CW510L DZR brass

• Pressure Testing: 2.5 times working pressure validation

• Dimension Standards: BS 864-2 and ASME B16.26 compliance

• Certification: WRAS, NSF, and DVGW approvals available

Why Choose Our Brass Compression Fittings?

• Manufacturing Precision: CNC machining for perfect tolerances

• Material Integrity: Lead-free compositions for potable water

• Complete Range: Thousands of configurations in stock

• Technical Support: Engineering consultation available

• Global Compliance: Meeting international regulatory requirements

IFAN factory started in 1993. And IFAN has workshop 120000 square meter with 610 staff. IFAN can design and produce all plumbing pipe and fitting include PPR,PVC,CPVC PPSU HDPE PEXA PEXB PERT pipe and fitting ,brass fitting, brass ball valve ,heating system , gas system , sanitary faucets and hose, In the past 30 Years, IFAN has never forgotten his mission-To protect health and safety. And IFAN factory use best materials to produce high quality pipe and fittings with automatic production line and high tech quality control machines. The most important,IFAN can guarantee that all pipes and fittings manufactured by IFAN are qualified. More information pls feel free contact us Whatsapp.
