PPR Plastic Reduce Socket: The Essential Guide for Plumbing Connections

When building reliable plumbing systems that require joining pipes of different diameters, the PPR plastic reduce socket serves as a critical connection component. This specialized fitting enables seamless transitions between pipe sizes while maintaining system integrity.

What is a PPR Plastic Reduce Socket?

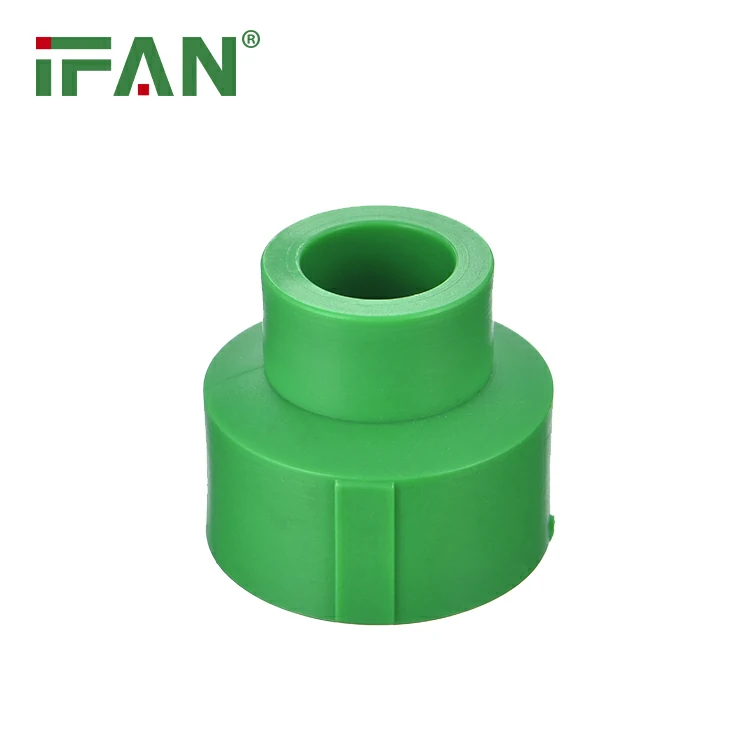

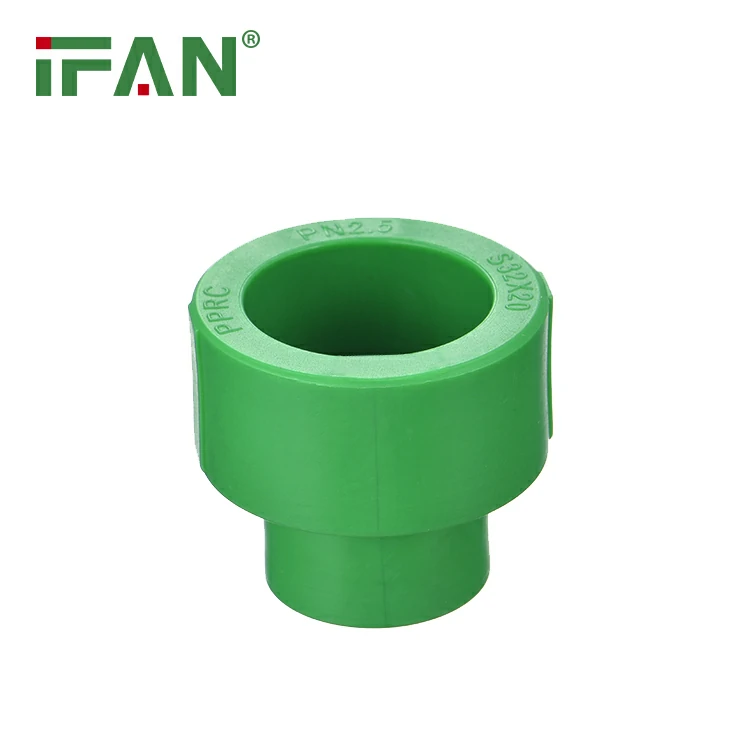

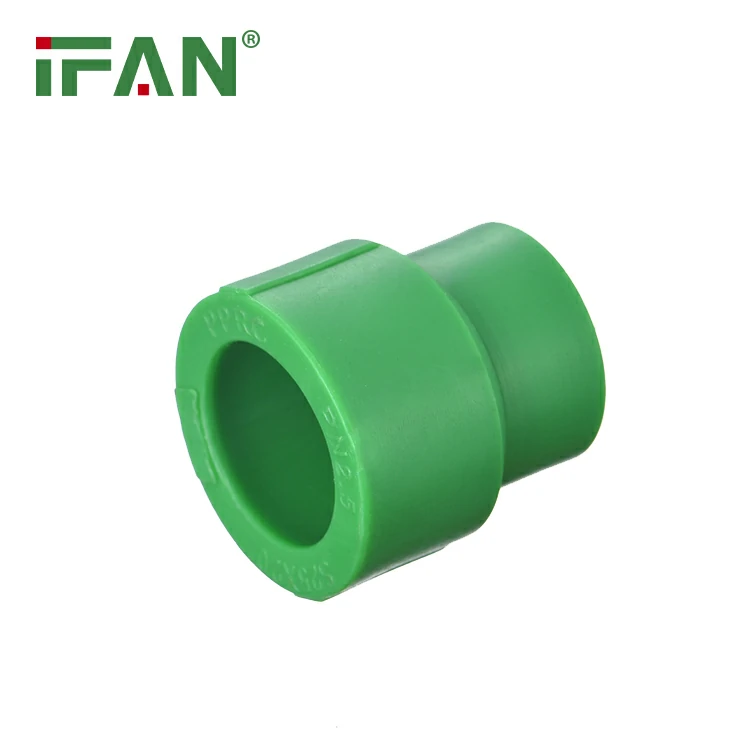

A PPR plastic reduce socket is a type of fitting that connects two PPR pipes of different diameters. Manufacturers make these connectors from high-quality Polypropylene Random Copolymer material, creating durable, corrosion-resistant components that handle both hot and cold water applications. The reduce socket features two female ends of different sizes, allowing for a secure transition between larger and smaller pipe diameters.

Key Applications and Uses

Plumbers use reduce sockets in various scenarios:

• Connecting main supply lines to smaller branch lines

• Transitioning between different pipe sizes in complex plumbing layouts

• Reducing pipe diameter to increase water pressure

• Adapting existing plumbing to new fixtures requiring different pipe sizes

• Industrial applications where pipe diameter changes are necessary

Technical Specifications

Standard Size Combinations

Reduce sockets come in various size combinations to accommodate different needs:

• 32mm to 25mm reduction

• 25mm to 20mm reduction

• 40mm to 32mm reduction

• 50mm to 40mm reduction

• 63mm to 50mm reduction

Pressure Ratings

These fittings typically handle pressure ratings of:

• PN10: 10 bar at 20°C

• PN16: 16 bar at 20°C

• PN20: 20 bar at 20°C

Installation Guidelines

Tools Required

• PPR pipe cutter

• Fusion welding machine

• Measuring tape

• Marker pen

• Cleaning supplies

Step-by-Step Installation Process

1. Measure and Cut: Precisely measure and cut both pipes to required lengths

2. Clean Components: Ensure all surfaces are clean and free from debris

3. Mark Insertion Depth: Mark the proper insertion depth on both pipe ends

4. Heat Simultaneously: Heat the reduce socket and both pipe ends simultaneously

5. Connect Pipes: Quickly insert both pipes into the reduce socket ends

6. Hold Firmly: Maintain pressure without twisting during cooling

7. Cool Naturally: Allow the connection to cool completely before testing

Advantages of PPR Reduce Sockets

• Leak-Free Connections: Fusion welding creates permanent, leak-proof joints

• Chemical Resistance: Withstands aggressive water conditions and chemicals

• Long Service Life: Lasts decades without degradation

• Low Maintenance: Requires no ongoing maintenance or tightening

• Eco-Friendly: Made from recyclable materials

Quality Standards and Certifications

Reputable manufacturers produce reduce sockets that meet international standards:

• ISO 9001 quality management

• ISO 15874 for polypropylene piping systems

• NSF/ANSI 61 for drinking water system components

• DIN 8077/8078 standards

Frequently Asked Questions

Q: Can I use a reduce socket for both hot and cold water?
A: Yes, PPR reduce sockets work effectively with both hot and cold water applications

Q: How does a reduce socket differ from a coupling?
A: While both connect pipes, reduce sockets join different diameters whereas couplings connect same-size pipes

Q: What’s the maximum temperature these sockets can handle?
A: PPR reduce sockets typically handle temperatures up to 95°C continuously

Q: Are reduce sockets reusable?
A: No, the fusion welding process creates permanent connections that are not reusable

Maintenance and Troubleshooting

Properly installed reduce sockets require minimal maintenance. However, users should:

• Regularly inspect visible connections for signs of stress

• Monitor system pressure to ensure it stays within rated limits

• Address water hammer issues promptly to prevent fitting stress

• Avoid exposing fittings to ultraviolet light for extended periods

Conclusion

PPR plastic reduce sockets provide reliable, long-lasting solutions for diameter transitions in plumbing systems. Their excellent chemical resistance, high-temperature tolerance, and leak-proof performance make them ideal for residential, commercial, and industrial applications. By following proper installation procedures and selecting quality components, plumbing professionals can ensure system integrity and longevity.

When selecting reduce sockets, always choose products from reputable manufacturers that provide proper certifications and warranties. This ensures compliance with international standards and guarantees performance reliability for years to come.
