Brass Press Fittings: The Complete Professional Guide

Introduction

Brass press fittings represent a revolutionary advancement in modern plumbing systems, offering professionals a fast, reliable alternative to traditional soldered or threaded connections. These high-performance components combine the durability of dezincification-resistant brass with innovative press technology, creating permanent joints in seconds without open flames or specialized skills. Ideal for potable water, heating, and gas systems, brass press fittings have become the gold standard for commercial and residential installations worldwide.

Key Advantages

1. Installation Efficiency

• Eliminates need for hot work permits

• Reduces installation time by 70-80%

• Allows immediate system pressurization

• No curing or setting time required

2. Superior Reliability

• Precision-machined brass bodies (CW602N)

• Factory-installed EPDM/HNBR sealing rings

• Vibration-resistant press connections

• Consistent performance across temperature fluctuations

3. System Versatility

• Compatible with copper, stainless steel, and multilayer pipes

• Suitable for potable water (NSF certified) and gas systems (DVGW approved)

• Available for both exposed and concealed installations

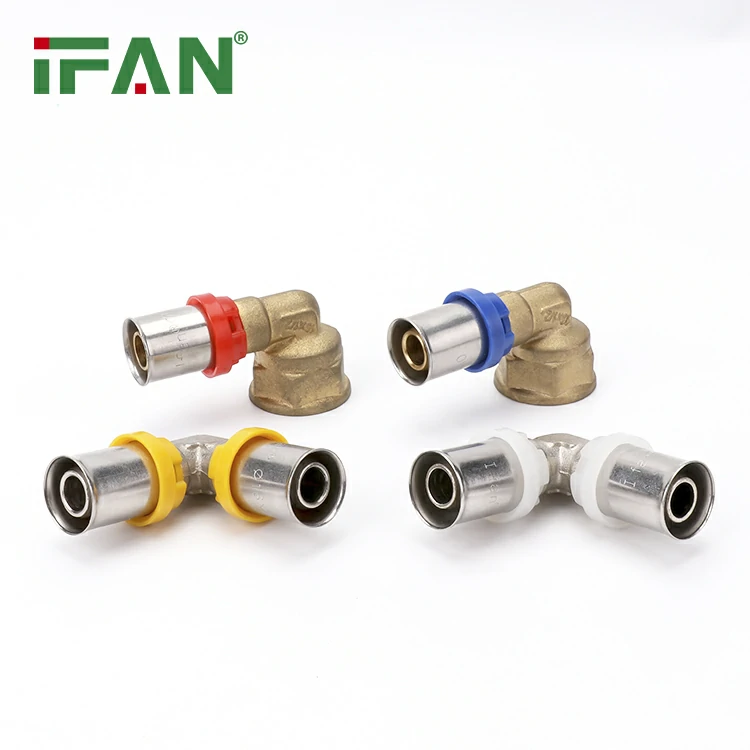

• Wide range of configurations (elbows, tees, couplings)

4. Long-Term Performance

• Corrosion-resistant dezincification-proof construction

• 50+ year service life expectancy

• Minimal maintenance requirements

• Withstands 500,000+ pressure cycles

Technical Specifications

Material Composition

• Body: DZR brass (EN 12165 CW602N)

• Seals: EPDM (water) or HNBR (gas)

• Press sleeves: 316 stainless steel

• O-rings: FDA-compliant materials

Performance Ratings

• Working pressure: 16 bar (PN16) at 65°C

• Burst pressure: ≥80 bar

• Temperature range: -20°C to 110°C continuous

• Certifications: WRAS, NSF/ANSI 61, DVGW, ACS

Standard Sizes and Types

• Water systems: 15mm to 108mm

• Gas applications: 15mm to 54mm

• Equal and reducing configurations

• Straight, elbow, tee, and cross variants

Professional Installation Guide

Pre-Installation Preparation

1. Verify pipe and fitting compatibility

2. Inspect O-ring condition and lubrication

3. Ensure pipe ends are square-cut and deburred

4. Mark insertion depth (typically 3mm beyond stop)

5. Confirm proper press tool calibration

Pressing Procedure

1. Fully insert pipe into fitting socket

2. Position press tool perpendicular to fitting

3. Execute complete crimping cycle (audible click)

4. Verify uniform crimp ring indentation

5. Conduct visual inspection of connection

Quality Assurance Protocol

• Pressure test at 1.5x working pressure

• Check for proper tool marking alignment

• Verify system integrity before concealment

• Document all press connections for future reference

Maintenance and Troubleshooting

Routine Inspection Schedule

• Annual visual checks for corrosion

• Biannual seal integrity verification

• Pressure testing every 3-5 years

• Monitoring for mineral buildup in hard water areas

Common Issues and Solutions

Conclusion

Brass press fittings have transformed modern plumbing installations by combining unprecedented speed with military-grade reliability. Their innovative press technology addresses all limitations of traditional joining methods while delivering permanent, maintenance-free performance. When properly selected and installed according to manufacturer specifications, these fittings ensure decades of trouble-free service in even the most demanding environments. Professional installers worldwide now consider brass press fittings indispensable for projects where time efficiency, system integrity, and long-term performance are equally critical. The combination of dezincification-resistant brass construction and precision press technology makes these fittings the smart choice for forward-thinking plumbing professionals.
