HDPE Male Elbow Fittings: Technical Specifications and Application Guide

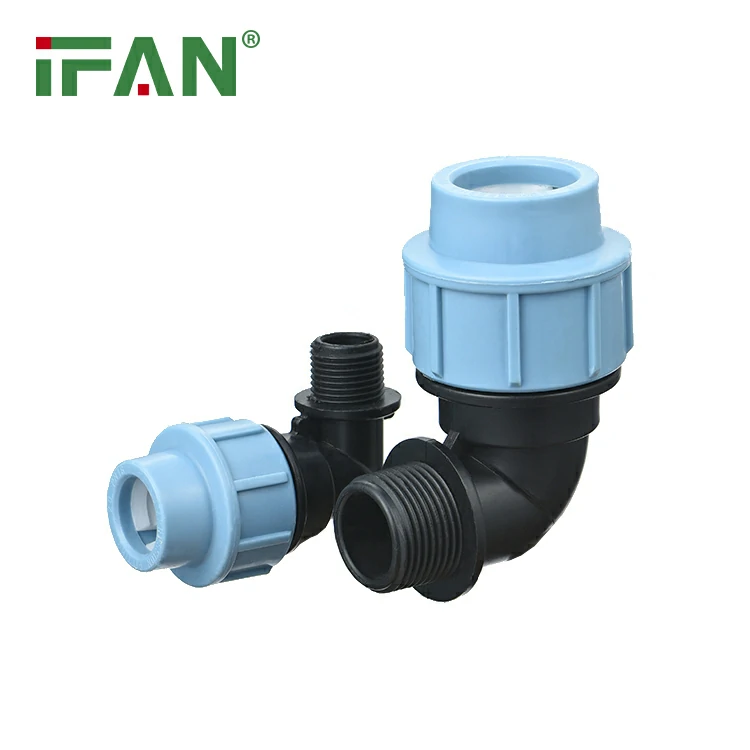

HDPE male elbow fittings are precision-engineered components that provide directional changes in high-density polyethylene piping systems while offering external threaded connections. These elbows feature a 90-degree or 45-degree bend with male threads on one end and a socket fusion connection on the other. The design enables smooth flow redirection and secure connection to female-threaded components such as valves, instruments, or equipment ports without requiring additional adapters.

The male elbow design offers several advantages for piping systems. The external threads allow for easy connection and disconnection of system components, facilitating maintenance and modifications. These fittings maintain the superior chemical resistance of HDPE, making them suitable for handling corrosive fluids and operating in aggressive environments. The smooth interior surface ensures minimal flow resistance and pressure drop through the elbow section. Their lightweight construction simplifies handling while providing durability that matches or exceeds metal alternatives in many applications.

Technical Specifications

HDPE male elbow fittings conform to international standards including ISO 4427 and ASTM D3261. Standard angles include 90-degree and 45-degree configurations, with pressure ratings from PN10 to PN16, supporting working pressures up to 16 bar at 20°C. Temperature tolerance ranges from -40°C to 60°C, accommodating various environmental conditions. Available sizes span from 20mm to 315mm for the socket fusion end, with threaded connections from 1/2″ to 4″ in BSPP, NPT, or other international thread standards. Materials include high-quality PE80 and PE100 compounds, with PE100 offering enhanced mechanical strength and pressure resistance.

Installation Guidelines

Proper installation requires careful execution of both fusion and threaded connection techniques. Begin by preparing the pipe end according to standard socket fusion procedures, ensuring a clean, square cut with proper chamfering. Use calibrated fusion equipment to heat both the socket and pipe end simultaneously, maintaining recommended temperature and heating duration. After joining, allow sufficient cooling time before handling the threaded connection. For the external threads, apply appropriate sealant such as PTFE tape or thread sealant paste, ensuring compatibility with HDPE material and system media. Use strap wrenches for tightening, avoiding tools that may damage the fitting, and follow manufacturer’s torque specifications precisely. Ensure proper alignment before final tightening to prevent stress on the connection.

Applications and Industry Uses

These fittings serve critical functions across multiple sectors. Water distribution systems utilize male elbows for service connections and directional changes at treatment plants. Industrial processing facilities employ them for equipment connections and pipeline direction changes in chemical processing lines. Irrigation systems benefit from their use in sprinkler system installations and directional adjustments. Mining operations use these elbows in process water systems and tailings pipeline configurations. Gas distribution networks incorporate them for service line connections and directional changes in distribution systems.

Maintenance and Operational Considerations

Regular inspection should focus on thread condition and overall fitting integrity. Monitor for signs of thread wear, corrosion, or damage to the external threads. Check for leaks at the threaded connection and reapply sealant as needed when performing maintenance. Ensure proper support of connected components to prevent stress on the elbow fitting. For systems experiencing vibration or thermal cycling, implement regular inspection schedules. Maintain appropriate tools and replacement components for maintenance operations, and always use manufacturer-approved sealants and replacement parts. Periodically verify torque settings on critical connections.

Conclusion

HDPE male elbow fittings provide reliable directional change solutions with threaded connection capability for HDPE piping systems. Their combination of permanent fusion connections and removable threaded joints offers flexibility and reliability for various industrial applications. Proper selection based on size, pressure rating, and material compatibility ensures optimal system performance. Adherence to correct installation procedures and maintenance practices guarantees long-term reliability and system integrity. These fittings represent an essential component in modern piping systems where directional changes and equipment connections are required in corrosive or demanding environments.
