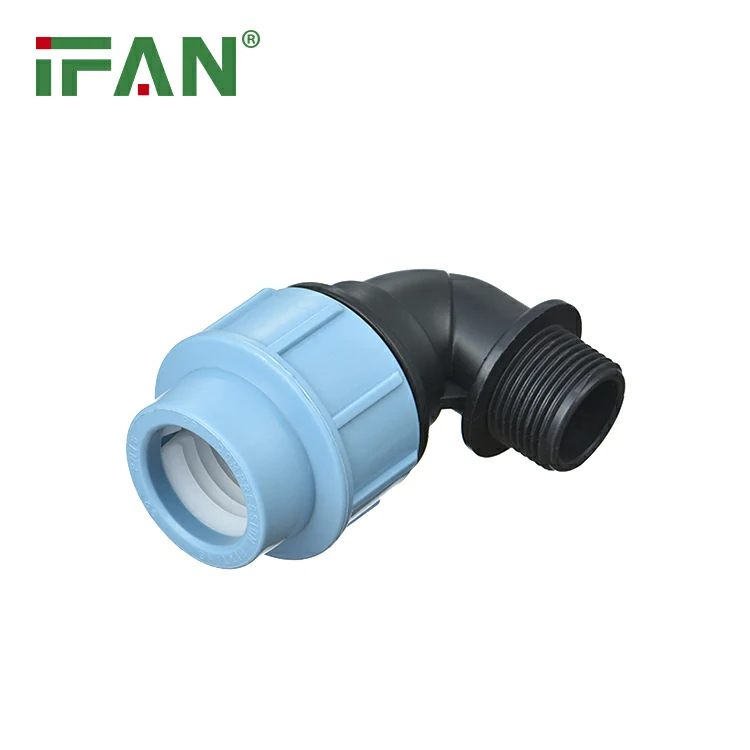

PP Thread Elbow Fitting: Complete Technical Guide

PP thread elbow fittings are essential components in polypropylene piping systems, designed to change flow direction while providing threaded connection options. These fittings combine the corrosion resistance of polypropylene with the versatility of threaded connections, making them ideal for various industrial applications. Available in 90-degree and 45-degree configurations, they facilitate efficient pipeline layout and equipment connections in systems requiring frequent maintenance or modifications.

The primary advantage of PP thread elbows lies in their dual functionality. The threaded connections allow for easy disassembly and reassembly, while the polypropylene construction ensures excellent resistance to chemicals, acids, and corrosive substances. These fittings feature smooth interior surfaces that minimize pressure drop and prevent fluid contamination. Their lightweight nature simplifies handling and installation compared to metal alternatives, and they eliminate galvanic corrosion concerns in mixed-material systems.

Product Specifications

PP thread elbow fittings are manufactured to international standards including ISO 161 and ASTM D4101. Standard pressure ratings range from PN10 to PN16, suitable for working pressures up to 16 bar at 20°C. Temperature resistance typically spans from -20°C to 95°C, depending on the specific polypropylene compound. Available sizes range from 1/2″ to 4″ in both BSPP and NPT thread standards. Materials include PP-H (homopolymer) and PP-R (random copolymer), with PP-R offering superior impact resistance and thermal stability. Connection types include female-female, male-female, and male-male configurations to suit various installation requirements.

Installation Guidelines

Proper installation begins with thread preparation and inspection. Clean all thread surfaces thoroughly and apply appropriate sealant such as PTFE tape or thread sealant paste compatible with polypropylene. Hand-tighten connections initially, then use a strap wrench to achieve the final tightness – avoid using pipe wrenches that can damage the fitting. For optimal performance, ensure proper alignment before final tightening to prevent stress on the connection. Support the piping system adequately to minimize mechanical stress on the threaded joints. Follow manufacturer’s recommended torque specifications and avoid over-tightening, which can cause thread damage or stress cracking.

Applications and Industry Uses

PP thread elbow fittings serve critical roles across multiple industries. Chemical processing plants utilize them for connecting instruments and equipment in corrosive fluid handling systems. Water treatment facilities employ these fittings for filter connections and pipeline direction changes. Pharmaceutical manufacturers rely on them for process piping requiring clean, corrosion-resistant connections. Industrial ventilation systems use thread elbows for fume extraction line installations. Irrigation systems incorporate these fittings for sprinkler connections and directional changes in water distribution networks.

Maintenance and Compatibility

Regular maintenance includes periodic inspection of thread conditions and seal integrity. Check for signs of wear, corrosion, or damage to the threads during routine maintenance cycles. Monitor for leaks at threaded connections and reapply sealant as needed. Ensure compatibility with system media, as some chemicals may affect thread sealants or the polypropylene material itself. For systems experiencing thermal cycling, consider periodic re-torquing of connections to maintain seal integrity. Keep appropriate tools and replacement fittings available for maintenance operations.

Conclusion

PP thread elbow fittings provide versatile and reliable solutions for directional changes in polypropylene piping systems. Their combination of threaded connection convenience and polypropylene’s chemical resistance makes them suitable for demanding industrial applications. Proper selection based on thread type, pressure rating, and chemical compatibility ensures optimal system performance. Following correct installation procedures and maintenance practices guarantees long-term reliability and system integrity. These fittings offer an effective solution for applications requiring both the corrosion resistance of plastic and the flexibility of threaded connections.
