The Complete Guide to Brass Check Valves: Essential Backflow Prevention

Fluid systems require reliable protection against reverse flow that can cause damage, contamination, or system failure. Brass check valves provide a robust solution for preventing backflow in plumbing, heating, and industrial applications. These essential components automatically allow fluid flow in one direction while preventing reverse flow, ensuring system integrity and safety. Whether you’re working on water supply systems, irrigation, or industrial processes, understanding brass check valves is crucial for designing reliable fluid systems.

The fundamental purpose of check valves is to protect equipment, prevent contamination, and maintain system efficiency. Brass construction offers excellent corrosion resistance and durability, making these valves suitable for various applications. Moreover, their automatic operation requires no manual intervention, providing continuous protection against reverse flow. Consequently, brass check valves have become indispensable components in numerous residential, commercial, and industrial systems.

This comprehensive guide examines brass check valves from multiple perspectives, covering design types, installation techniques, selection criteria, and maintenance considerations to help you make informed decisions for your projects.

Understanding Brass Check Valves

Brass check valves are mechanical devices designed to permit fluid flow in one direction while automatically preventing flow reversal. These valves utilize various internal mechanisms—such as swing checks, spring-assisted designs, or lift checks—that respond to flow pressure to open and close. Manufactured from high-quality dezincification-resistant brass, these valves withstand corrosion and provide long service life in water-based systems.

The automatic operation occurs through pressure differentials: forward flow pressure opens the valve, while reverse flow or pressure drop causes immediate closure. This failsafe design ensures continuous protection without requiring manual operation or external power sources. Most brass check valves feature compact designs suitable for confined spaces and include threaded connections for easy installation in existing piping systems.

Key Advantages of Brass Check Valves

The brass construction and check valve design offer numerous significant benefits:

1. Automatic Operation: Self-actuating without manual intervention

2. Backflow Prevention: Protects against contamination and damage

3. Corrosion Resistance: DZR brass withstands water corrosion

4. Durable Construction: Withstands high pressures and temperatures

5. Low Pressure Drop: Efficient designs minimize flow restriction

6. Maintenance-Free: Long service life with minimal upkeep

7. Versatile Applications: Suitable for various fluids and systems

8. Easy Installation: Standard threaded connections simplify installation

Types of Brass Check Valves

Different designs suit specific application requirements:

Swing Check Valves

• Design: Hinged disc that swings open with flow pressure

• Applications: Horizontal pipelines with consistent flow

• Features: Full port design, low pressure drop

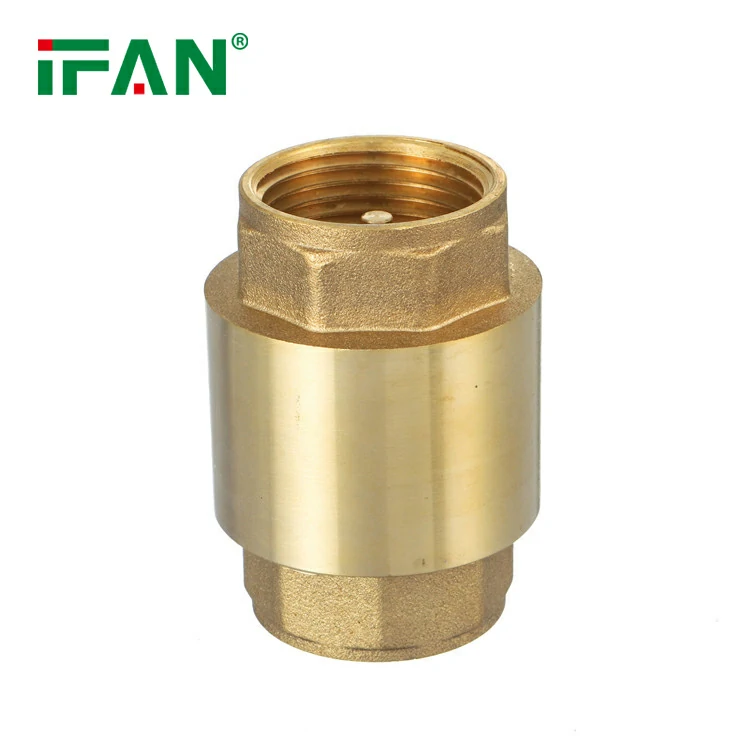

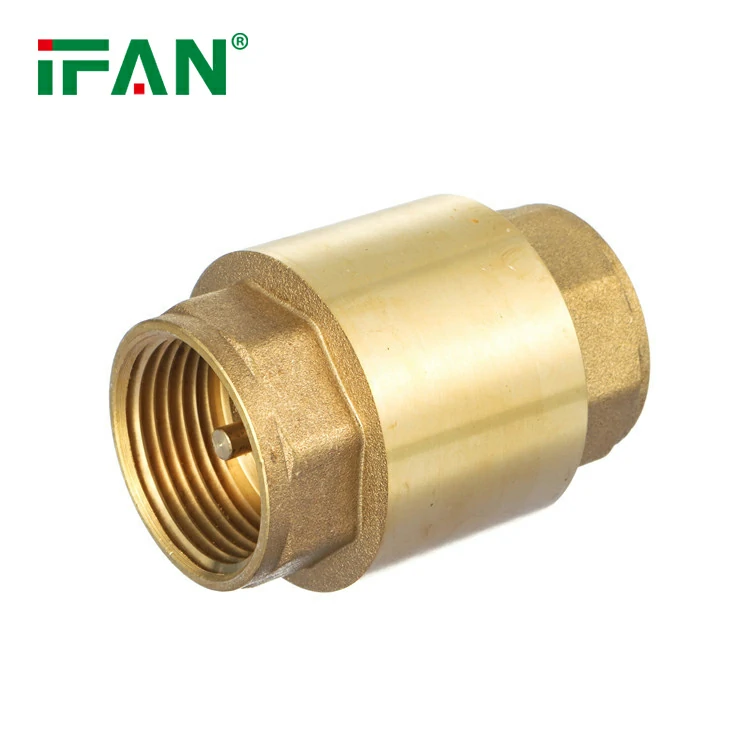

Spring Check Valves

• Design: Spring-assisted closure for quick response

• Applications: Vertical or horizontal installations

• Features: Prevents water hammer, versatile orientation

Lift Check Valves

• Design: Piston-like disc that lifts with flow pressure

• Applications: High-pressure systems

• Features: Positive sealing, durable construction

Ball Check Valves

• Design: Ball that moves away from seat with flow

• Applications: Viscous fluids, slurries

• Features: Simple design, reliable operation

Professional Installation Guidelines

Proper installation ensures optimal performance and longevity:

Preparation Phase:

1. System Assessment: Determine flow direction and valve orientation

2. Location Selection: Choose accessible location for maintenance

3. Pipe Preparation: Clean threads and remove debris

4. Valve Inspection: Check for damage and proper operation

Installation Process:

1. Flow Direction: Ensure arrow points in direction of flow

2. Thread Sealing: Apply appropriate sealant to male threads

3. Hand Tightening: Start threads by hand to prevent cross-threading

4. Final Tightening: Use appropriate tools without over-tightening

5. Support: Provide adequate piping support near valve

6. Testing: Conduct system pressure test before operation

Orientation Considerations:

• Swing Checks: Must be installed horizontally

• Spring Checks: Suitable for any orientation

• Lift Checks: Require specific orientation per manufacturer specs

Selection Considerations

Key factors for optimal valve selection:

• Flow Requirements: Minimum flow pressure for valve operation

• Pressure Rating: Suitable for system operating pressure

• Temperature Range: Compatible with fluid temperature

• Connection Type: Thread size and standard (NPT, BSP)

• Valve Size: Appropriate for pipe diameter and flow rate

• Application Type: Water, gas, or chemical service

• Certifications: NSF/ANSI 61 for potable water applications

• Material Quality: DZR brass for corrosion resistance

Technical Specifications

• Pressure Rating: 150-300 PSI (standard applications)

• Temperature Range: -20°F to 350°F (-29°C to 177°C)

• Size Range: ¼” to 2″ diameters

• Materials: Dezincification-Resistant Brass (DZR)

• End Connections: NPT, BSPP, BSPT threads

• Cracking Pressure: 0.5-5 PSI (depending on design)

Frequently Asked Questions

Q: Can brass check valves be installed vertically?
A: Spring-assisted check valves can be installed vertically; swing checks require horizontal installation.

Q: What is water hammer and how do check valves prevent it?
A: Water hammer is pressure surge caused by sudden flow stoppage. Spring check valves close quickly to prevent this.

Q: Are brass check valves suitable for potable water?
A: Yes, when certified to NSF/ANSI 61 standards.

Q: How often do check valves require maintenance?
A: Most require minimal maintenance, but periodic inspection is recommended.

Q: Can check valves be repaired?
A: Some designs allow component replacement; others require complete valve replacement.

Common Applications

Essential for numerous scenarios:

• Water Supply Systems: Preventing backflow in main lines

• Boiler Systems: Protecting against reverse flow

• Irrigation Systems: Maintaining direction in sprinkler systems

• Industrial Processes: Ensuring proper flow direction

• Pump Protection: Preventing backflow through pumps

• Heating Systems: Maintaining circulation direction

Maintenance Best Practices

Ensure long-term performance and reliability:

• Regular Testing: Periodically verify proper operation

• Visual Inspection: Check for leaks or corrosion

• Flow Testing: Ensure proper opening and closing

• System Flushing: Remove debris that could affect operation

• Record Keeping: Document installation and maintenance dates

• Replacement Planning: Schedule replacement based on service life

Conclusion: Essential Flow Protection

Brass check valves provide critical protection against backflow, ensuring system safety and efficiency. Their automatic operation, durable construction, and reliable performance make them essential components in numerous fluid systems. Furthermore, their versatility and ease of installation make them suitable for various applications from residential plumbing to industrial processes.

By selecting quality brass check valves and following proper installation practices, you ensure system reliability, prevent contamination, and protect equipment from damage. Therefore, careful consideration of application requirements and proper installation techniques becomes crucial for optimal system performance. Ultimately, these components represent a valuable investment in system integrity and safety.
