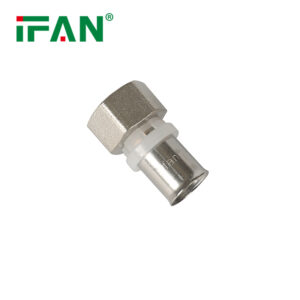

IFAN High Standard 16-32mm Threaded Brass PEX Press Fittings

Brass PEX Press Fittings: A Technical & Installation Guide

1. What Are Brass PEX Press Fittings?

Brass PEX Press Fittings are high-performance mechanical connectors for PEX (cross-linked polyethylene) plumbing systems. These fittings feature a lead-free brass body and a pre-installed stainless steel sleeve. Using a hydraulic press tool, the sleeve is compressed to create a permanent, leak-proof joint without heat, solder, or adhesives. They are designed for speed, reliability, and consistency in professional installations.

2. Key Specifications & Standards

• Body Material: Lead-free brass (DZR – Dezincification Resistant)

• Sleeve Material: 300-series stainless steel (304 or 316)

• Compatibility: PEX-A, PEX-B, PEX-C (verify with manufacturer)

• Pressure Rating: 100 psi at 180°F (ASTM F877/F878)

• Temperature Range: -40°F to 200°F (-40°C to 93°C)

• Standard Sizes: ½”, ¾”, 1″, 1¼”, 1½”, 2″

• Certifications: NSF/ANSI 61 (potable water), IAPMO, UPC, ISO

• Warranty: Typically 25+ years with professional installation

3. Advantages

Installation Efficiency:

• Speed: Each connection takes 5–10 seconds.

• Consistency: Calibrated tools ensure identical compression every time.

• Space-saving: Requires minimal clearance compared to crimp tools.

Performance & Reliability:

• Leak Resistance: Near-zero failure rate with proper installation.

• Corrosion Resistance: Brass and stainless steel are immune to rust and scaling.

• Durability: Withstands pressure surges and thermal cycling.

Job Site Benefits:

• Safety: No open flames, fumes, or hot work permits needed.

• Cleanliness: No flux, solder, or chemical cleaners required.

• Versatility: Effective in wet conditions and confined spaces.

4. Installation Process

4. 1: Preparation

• Cut the PEX pipe squarely using a dedicated cutter.

• Deburr the pipe end thoroughly.

• Slide the press sleeve onto the pipe (if not pre-attached).

• Mark the insertion depth using the manufacturer’s gauge.

4. 2: Pressing

• Insert the pipe fully into the fitting until it bottoms out.

• Position the correct jaw size around the sleeve (color-coded).

• Activate the press tool until it completes its automatic cycle.

• Inspect the 360° indentation around the sleeve for uniformity.

4.3: Testing & Commissioning

• Pressure test the system at 1.5× operating pressure.

• Perform a visual inspection of all press marks.

• Document the installation for warranty compliance.

5. Required Tools & Investment

Essential Tools:

• Hydraulic press tool (battery, electric, or manual)

• Size-specific jaw sets (color-coded by diameter)

• Calibration gauge

• PEX cutter and deburring tool

• Insertion depth gauge

Approximate Costs:

• Starter kit: $400–$800

• Professional kit: $800–$2,500

• Note: Tools are typically brand-specific and not interchangeable.

6. Applications

Residential Plumbing:

• Whole-house repiping and new construction

• Water heater and manifold connections

• Radiant floor heating systems

• Appliance supply lines

Commercial Projects:

• Multi-unit residential buildings

• Hotels, hospitals, and restaurants

• Mechanical rooms and hydronic systems

• Retrofits with minimal downtime

Ideal Use Cases:

• Tight spaces where crimp tools won’t fit

• Projects requiring fast installation

• Systems demanding the highest reliability

• Installations where cleanliness is critical

7. Limitations & Considerations

System Commitment:

• Tools and fittings are usually brand-specific.

• Switching brands requires reinvestment in tools.

Upfront Costs:

• Higher initial investment in tools and fittings.

• Requires manufacturer training for optimal results.

Site Requirements:

• Needs clean, dry conditions for best performance.

• Battery tools require charging access on large sites.

Professional Requirements:

• Some regions require special certification.

• Regular tool calibration is essential (every 5,000–10,000 presses).

8. Professional Best Practices

1. Training: Ensure installers are manufacturer-certified.

2. Tool Care: Calibrate tools regularly and maintain batteries.

3. Compatibility: Verify PEX type and fitting compatibility before installation.

4. Quality Control: Implement random inspections during large projects.

5. Documentation: Keep records of tool calibration and installation dates.

6. Inventory: Stock spare jaws and batteries to avoid downtime.

9. Comparison with Other Methods

9.1 vs. Crimp Fittings:

• Press advantage: Faster, more consistent, better for tight spaces.

• Crimp advantage: Lower tool cost, wider brand compatibility.

9.2 vs. Expansion Fittings:

• Press advantage: Works with all PEX types, less timing-sensitive.

• Expansion advantage: Stronger “memory” seal with PEX-A.

9.3 vs. Push-to-Connect Fittings:

• Press advantage: Lower long-term cost, no O-ring degradation.

• Push-fit advantage: No tools needed, ideal for emergency repairs.

10. Troubleshooting

Common Issues:

• Incomplete press: Wrong jaw size or uncalibrated tool.

• Leaking joint: Pipe not fully inserted or sleeve omitted.

• Tool failure: Dead battery or hydraulic malfunction.

Solutions:

• Always carry a backup manual press tool.

• Use a pre-installation checklist to avoid errors.

• Maintain a relationship with the tool manufacturer for support.

Summary: Brass PEX Press Fittings offer a fast, reliable, and professional-grade connection method for PEX plumbing systems. While the initial tool investment is significant, the long-term benefits in labor savings, consistency, and reduced callbacks make them an excellent choice for high-volume residential and commercial projects. Success depends on proper training, tool maintenance, and adherence to manufacturer specifications. For plumbing professionals focused on efficiency and quality, this system represents a smart investment in modern plumbing technology.
