PPR Crossover: A Versatile Solution for Complex Plumbing Systems

Introduction

PPR crossover fittings play an essential role in modern plumbing systems, offering unique versatility for managing pipe layouts in tight or complex spaces. Designed to connect two parallel PPR pipes while allowing them to cross over without interference, these fittings simplify installations and improve system efficiency.

Structural Design of PPR Crossover

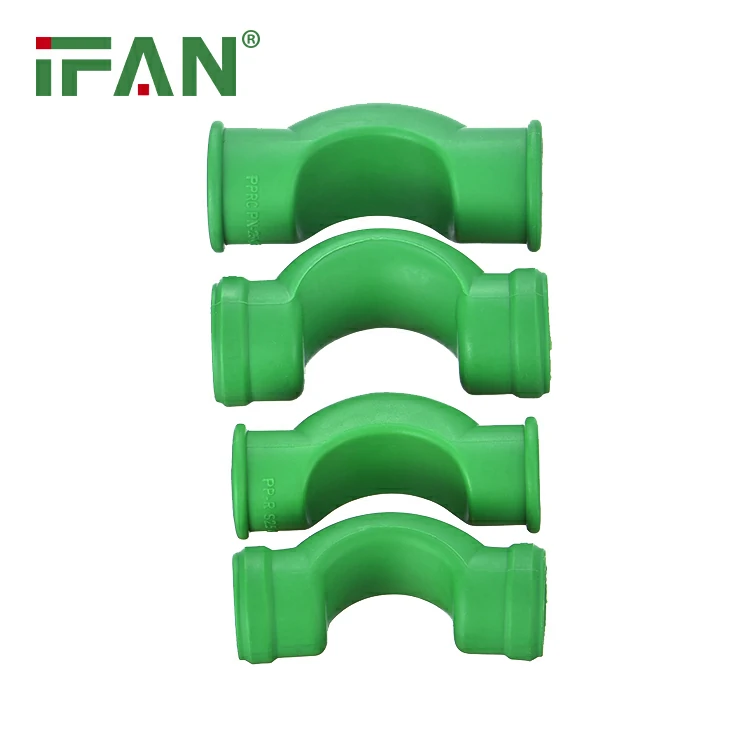

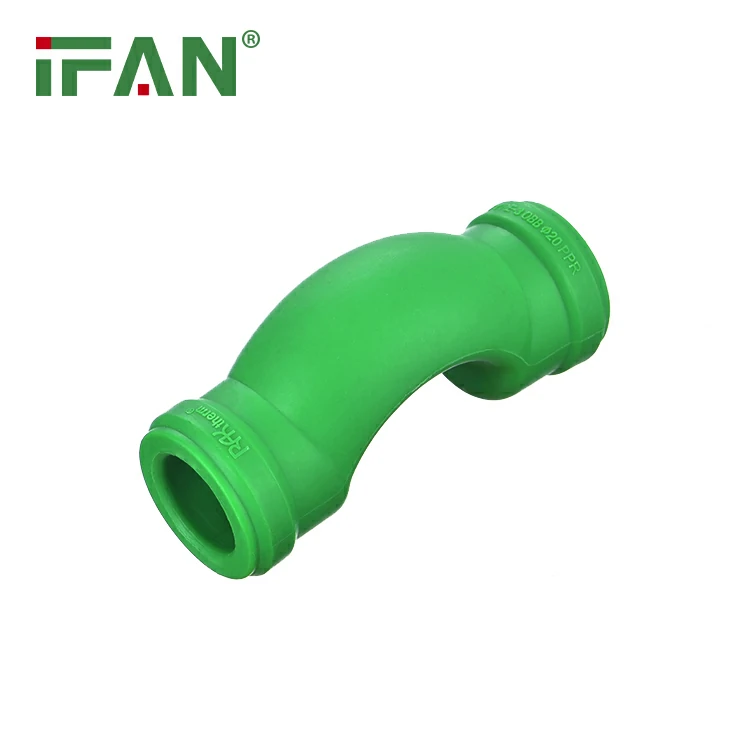

The PPR crossover fitting features a precise “S”-shaped structure that seamlessly connects two parallel pipes. This design ensures a smooth and secure flow path, eliminating the need for additional fittings or pipe modifications. Made from high-quality polypropylene random copolymer (PPR), these crossovers resist pressure, temperature fluctuations, and chemical exposure.

Benefits of PPR Crossover in Plumbing Systems

1. Space Optimization: PPR crossovers allow pipes to cross over each other without altering pipe runs. This helps maximize space in tight installations such as wall cavities, floors, and ceilings.

2. Leak Prevention: By reducing the number of fittings and connections, PPR crossover fittings minimize potential leak points, enhancing system reliability.

3. Durability and Resistance: PPR crossovers withstand high pressures and temperatures, making them suitable for hot and cold water systems. Their resistance to corrosion and chemicals ensures long-term performance.

4. Easy Installation: PPR crossovers are lightweight and compatible with heat fusion welding, enabling quick and secure connections without special tools.

Common Applications

• Residential Plumbing: Ideal for bypassing obstructions in kitchen and bathroom installations.

• Commercial Systems: Used in large-scale plumbing systems where space constraints demand efficient pipe layouts.

• Industrial Piping: Suitable for chemical or process piping systems requiring parallel pipe runs without complex fittings.

Installation Best Practices

• Precise Alignment: Ensure proper alignment of pipes before fusion welding to achieve a strong, leak-free connection.

• Controlled Heating: Use correct heating temperature and timing for the crossover fitting and pipes.

• Pressure Testing: After installation, perform a pressure test to confirm joint integrity and eliminate leaks.

Conclusion

PPR crossover fittings provide a practical solution for managing parallel pipe layouts in confined or intricate plumbing systems. Their durability, resistance to corrosion, and easy installation make them an essential component for professionals seeking reliable, space-saving connections.
