PEX Pipe Press Fitting Elbow: The Ultimate Guide to Seamless

Introduction

The PEX Pipe Press Fitting Elbow is a game-changer for plumbers and DIYers seeking a fast, durable, and flame-free solution for 90-degree pipe turns in PEX systems. Unlike traditional soldered or glued elbows, these fittings use mechanical compression to create a permanent, watertight seal in seconds. Whether you’re navigating tight corners under a sink, rerouting pipes in a bathroom remodel, or designing a hydronic heating loop, understanding how to use PEX press elbows ensures code-compliant, leak-resistant installations with minimal effort. This guide covers everything from design principles to real-world applications, empowering you to tackle bends with confidence.

What Is a PEX Pipe Press Fitting Elbow?

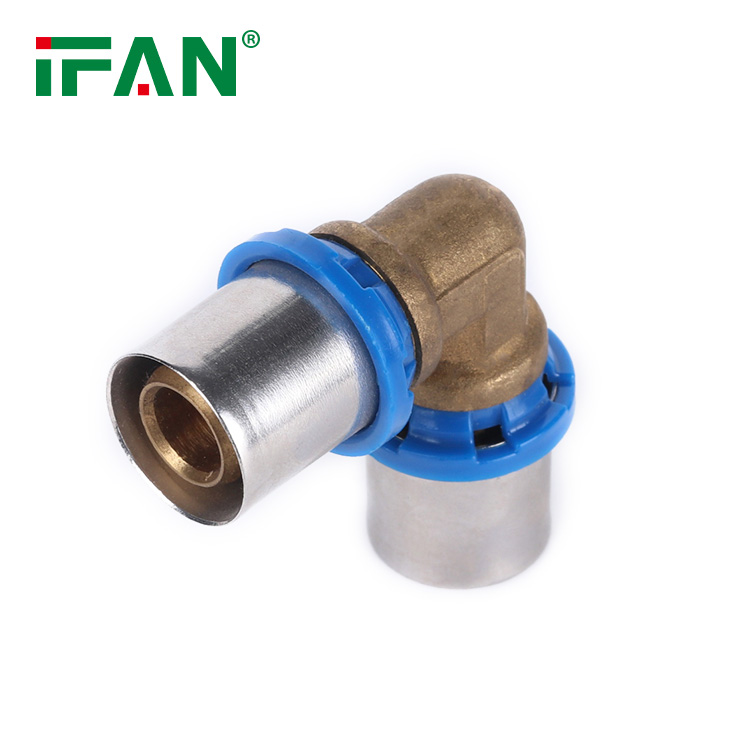

A PEX Pipe Press Fitting Elbow is a 90-degree plumbing fitting engineered to connect two PEX pipes at a right angle. Key components include:

1. Elbow Body: Crafted from lead-free brass or 316 stainless steel, it resists corrosion and handles pressures up to 200 PSI and temperatures from -40°F to 200°F.
2. Press Sleeves (Rings): Stainless-steel collars that deform when compressed, locking PEX pipes into the elbow’s ports with uniform pressure.
3. O-Ring Seals: Rubber or silicone gaskets inside each port ensure a tight seal without adhesives.

Available in diameters from ¼-inch to 2-inch, these elbows work with all PEX types (A, B, C) and are ideal for potable water, radiant floor heating, and industrial fluid systems.

Why Choose PEX Pipe Press Fitting Elbows?

1. Superior Leak Resistance

Press elbows distribute compression force evenly across two stainless-steel sleeves, creating a 360-degree seal that outperforms crimp rings or clamps. A 2024 study by the International Association of Plumbing and Mechanical Officials (IAPMO) found that press fittings reduce joint failures by 85% in high-vibration environments compared to traditional methods.

2. Lightning-Fast Installation

• No Soldering or Glue: Eliminate the need for torches, fluxes, or drying time.
• Single-Step Process: Insert pipes, press each sleeve, and move on—perfect for tight spaces like cabinets or crawl spaces.
• Time Savings: Contractors report completing 90-degree bends 50% faster with press elbows versus soldered elbows.

3. Versatility Across PEX Types

• Universal Compatibility: Works with PEX-A (most flexible), PEX-B (most common), and PEX-C (stiffer but cost-effective).
• Multi-Application Use: Suitable for hot/cold water lines, snowmelt systems, and even compressed air (with proper certification).

4. Safety and Environmental Benefits

• No Open Flames: Safer for renovations in occupied buildings or near insulation.
• Lead-Free Certification: Meets NSF/ANSI 61 standards for drinking water safety.
• Chemical-Free: Avoid toxic soldering fluxes or PVC glues that can contaminate water supplies.

Step-by-Step Installation Guide

1. Gather Tools and Materials

• Press Tool: Choose jaws matching your PEX diameter (e.g., ¾-inch jaws for ¾-inch pipes).
• Pipe Cutter: Use a rotary cutter for clean, square cuts.
• Deburring Tool: Remove burrs to prevent O-ring damage.
• Calibration Gauge: Verify the press tool is functioning correctly.

2. Prepare the PEX Pipes

1. Measure and mark cutting points on the two PEX pipes where they’ll connect to the elbow’s ports.
2. Use a rotary cutter to make perpendicular cuts.
3. Ream the interior and exterior edges with a deburring tool to eliminate sharp burrs.
4. Wipe pipes with a clean cloth to remove debris.

3. Insert PEX Pipes into the Elbow

1. Slide the first PEX pipe into one port of the elbow until it stops (typically 1–2 inches).
2. Insert the second pipe into the opposite port at a precise 90-degree angle.
3. Ensure both pipes are fully seated by checking insertion depth marks (if provided).

4. Press Each Sleeve

1. Position the press tool jaw over the stainless-steel sleeve on the first port, centering it on the elbow’s midpoint.
2. Squeeze the tool’s handles until you hear a click, indicating full compression.
3. Repeat for the second port, ensuring the sleeve is pressed evenly.
4. Use a go/no-go gauge to confirm proper compression (the “go” side should fit, the “no-go” side should not).

5. Test the Connection

1. Pressurize the system to 100 PSI and inspect for leaks around both ports.
2. Gently tug on each pipe to ensure the elbow is secure; a properly pressed joint will not move.

Real-World Applications

1. Residential Kitchen Remodel

A homeowner in California used ½-inch brass press elbows to reroute PEX supply lines around a new dishwasher and refrigerator water line. The installation took 20 minutes, compared to 1 hour for soldering, and passed inspection without leaks.

2. Commercial Radiant Floor Heating

A restaurant in New York installed ¾-inch stainless-steel press elbows to navigate 90-degree turns in a 5,000-square-foot floor heating system. The mechanical compression withstood temperature fluctuations from 40°F to 180°F without failing.

3. Industrial Process Cooling

A factory in Georgia integrated 1-inch press elbows to redirect PEX tubes around machinery in a cooling system. The elbows maintained pressure integrity despite vibrations, reducing maintenance costs by 30%.

Common Mistakes to Avoid

1. Using the Wrong Press Tool

• Issue: Mismatched jaws can lead to incomplete compression or pipe damage.
• Fix: Always use a jaw size specified by the elbow manufacturer.

2. Skipping Deburring

• Issue: Burrs can scratch the O-ring, causing leaks.
• Fix: Ream pipes thoroughly before insertion.

3. Over-Pressing

• Issue: Excessive force can crack the elbow or deform the pipe.
• Fix: Stop pressing when the tool clicks and verify with a gauge.

Conclusion

PEX Pipe Press Fitting Elbows offer a fast, reliable, and eco-friendly solution for 90-degree pipe turns in plumbing systems. By following proper installation techniques, professionals and DIYers can achieve leak-free performance while saving time and avoiding hazardous materials like solder. Whether for residential upgrades or industrial projects, these elbows are a smart investment in durability and efficiency.IFAN factory started in 1993. And IFAN has workshop 120000 square meter with 610 staff. IFAN can design and produce all plumbing pipe and fitting include PPR,PVC,CPVC PPSU HDPE PEXA PEXB PERT pipe and fitting ,brass fitting, brass ball valve ,heating system , gas system , sanitary faucets and hose, In the past 30 Years, IFAN has never forgotten his mission-To protect health and safety. And IFAN factory use best materials to produce high quality pipe and fittings with automatic production line and high tech quality control machines. The most important,IFAN can guarantee that all pipes and fittings manufactured by IFAN are qualified. More information pls feel free contact us Whatsapp.
