PEX Press Fitting Socket: Installation, Benefits, and Expert Tips

Introduction

PEX Press Fitting Sockets are revolutionizing pipe connections in modern plumbing and heating systems. Designed for use with cross-linked polyethylene (PEX) tubing, these mechanical fittings eliminate the need for soldering, crimping, or gluing, offering a faster, safer, and more reliable alternative. Whether you’re a professional plumber tackling a commercial project or a DIY enthusiast upgrading your home’s water supply, understanding PEX Press Fitting Sockets can save time, reduce errors, and ensure long-lasting performance. This guide explores their design, benefits, applications, and installation techniques to help you master PEX connections.

What Is a PEX Press Fitting Socket?

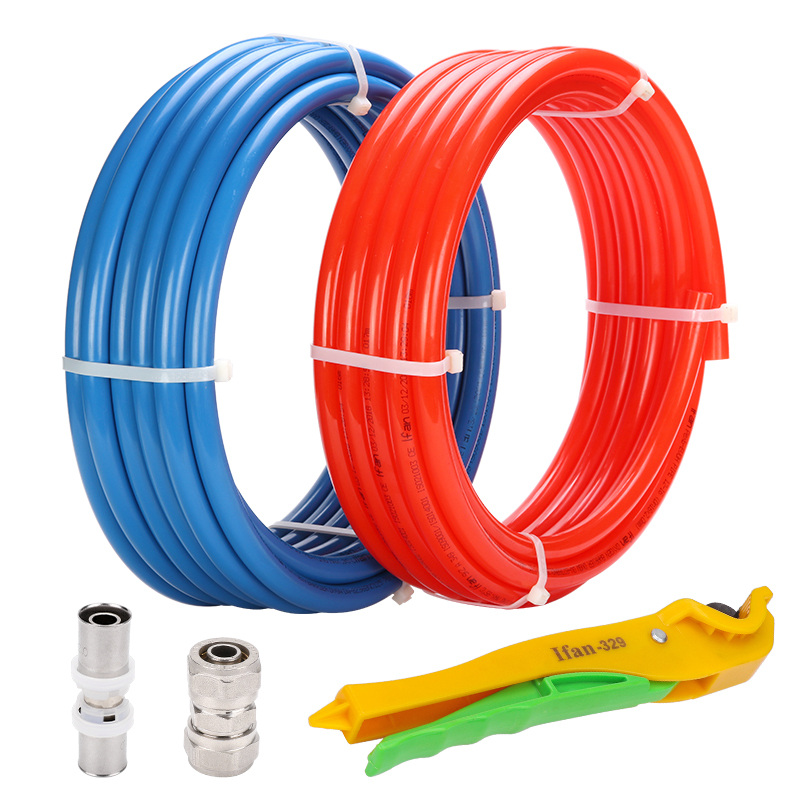

A PEX Press Fitting Socket is a straight mechanical connector used to join two sections of PEX pipe end-to-end. It consists of:

1. Brass or Stainless-Steel Body: Durable and corrosion-resistant, available in standard sizes (e.g., ½”, ¾”, 1”).
2. Silicone or EPDM O-Ring: Creates a watertight seal between the fitting and pipe.
3. Stainless-Steel Press Sleeve: A collar that compresses the O-ring onto the pipe when pressed with a specialized tool, ensuring a permanent, leak-proof joint.

Unlike traditional fittings, PEX Press Sockets require no manual crimping or calibration. The press tool deforms the sleeve uniformly, providing consistent compression for reliable results every time.

Key Advantages of PEX Press Fitting Sockets

1. Speed and Efficiency Installations take seconds per connection, compared to minutes for soldered or crimped joints. This reduces labor costs by up to 40% on large projects.
2. No Specialized Skills Required The process is straightforward: cut, insert, and press. Perfect for DIYers or apprentices with limited plumbing experience.
3. Leak-Proof Reliability The press sleeve’s permanent deformation ensures uniform compression, minimizing human error and eliminating the need for rework.
4. Versatility Works with all PEX types (A, B, C) and temperatures up to 200°F (93°C), making it suitable for hot and cold water systems.
5. Safe and Clean No open flames, toxic fumes, or chemical adhesives are needed, improving job site safety and reducing cleanup time.
6. Visual Confirmation Many press tools leave an indentation on the sleeve, providing instant verification of a secure connection.

Common Applications

1. Residential Plumbing Connect PEX pipes for sinks, showers, toilets, and appliances like washing machines and dishwashers.
2. Radiant Floor Heating Ideal for joining loops in underfloor heating systems, where consistent temperature control and durability are critical.
3. Snow Melting Systems Used in driveways or walkways to circulate heated fluid and prevent ice buildup.
4. Commercial Piping Networks Suitable for high-pressure applications like boiler systems, fire sprinklers, and industrial compressed air lines.
5. Potable Water Systems Certified to NSF/ANSI 61 and 372 standards for lead-free compliance, ensuring safe drinking water.

How to Install a PEX Press Fitting Socket

Tools Required:

• PEX pipe cutter or rotary tool
• Deburring tool
• PEX Press Fitting Socket (appropriate size)
• PEX press tool (manual or battery-powered)
• Marker (optional, for alignment)

Steps:

1. Measure and Cut the PEX Pipe Use a sharp PEX cutter to make a clean, square cut. Avoid crushing or distorting the pipe end, as this can compromise the seal.
2. Deburr and Clean the Pipe Smooth rough edges with a deburring tool to prevent damage to the O-ring. Wipe the pipe clean of dirt, grease, or debris.
3. Insert the PEX Press Fitting Socket Push the socket fully onto one end of the PEX pipe until it reaches the shoulder or stop point. Ensure no gaps remain between the pipe and fitting.
4. Position the Press Sleeve The sleeve should already be pre-installed on the socket. If not, slide it over the pipe before inserting the fitting.
5. Press the Connection Align the press tool jaws perpendicular to the sleeve and squeeze the handles (or trigger, for battery-powered tools). Apply firm, even pressure until the tool releases. Repeat for the opposite end if connecting two pipes.
6. Inspect the Connection Check for a visible indentation on the sleeve and ensure no part of the O-ring is exposed.

Pro Tips:

• Use tees and tools from the same manufacturer to ensure compatibility.
• For vertical installations, support the pipe every 3–4 feet to prevent sagging.
• Test the system at 1.5x the maximum operating pressure (e.g., 90 PSI for a 60 PSI system) for 24 hours before finalizing the installation.

PEX Press Fitting Socket vs. Traditional Fittings

1. Speed: Press sockets are installed in seconds, while crimped or soldered fittings require rings, tools, and gauges.
2. Error Rate: Press systems reduce human error, as the tool ensures consistent compression every time.
3. Cost: Press sockets are slightly more expensive per unit, but labor savings often offset the difference.
4. Reusability: Traditional crimping rings can be reused if removed carefully, but press sockets are permanent.

Maintenance and Longevity

PEX Press Fitting Sockets require minimal maintenance once installed. Periodically inspect connections for signs of wear or corrosion, especially in aggressive water conditions. When properly pressed, these sockets can last the lifespan of the PEX pipe itself—typically 50+ years.

Environmental Considerations

PEX Press Fitting Sockets generate less waste than soldered copper fittings, as they don’t require flux, solder, or chemical cleaners. Additionally, PEX pipes are more energy-efficient than copper due to their insulating properties, reducing heat loss in hot water systems.

Conclusion

PEX Press Fitting Sockets offer a modern, efficient solution for joining PEX pipes in residential and commercial applications. Their leak-proof design, ease of installation, and compatibility with various PEX types make them a top choice for professionals and homeowners alike. By following proper installation techniques and using quality components, users can enjoy reliable, maintenance-free performance for decades.IFAN factory started in 1993. And IFAN has workshop 120000 square meter with 610 staff. IFAN can design and produce all plumbing pipe and fitting include PPR,PVC,CPVC PPSU HDPE PEXA PEXB PERT pipe and fitting ,brass fitting, brass ball valve ,heating system , gas system , sanitary faucets and hose, In the past 30 Years, IFAN has never forgotten his mission-To protect health and safety. And IFAN factory use best materials to produce high quality pipe and fittings with automatic production line and high tech quality control machines. The most important,IFAN can guarantee that all pipes and fittings manufactured by IFAN are qualified. More information pls feel free contact us Whatsapp.
